ZX40E10J01

Active

Honeywell Sensing and Productivity Solutions

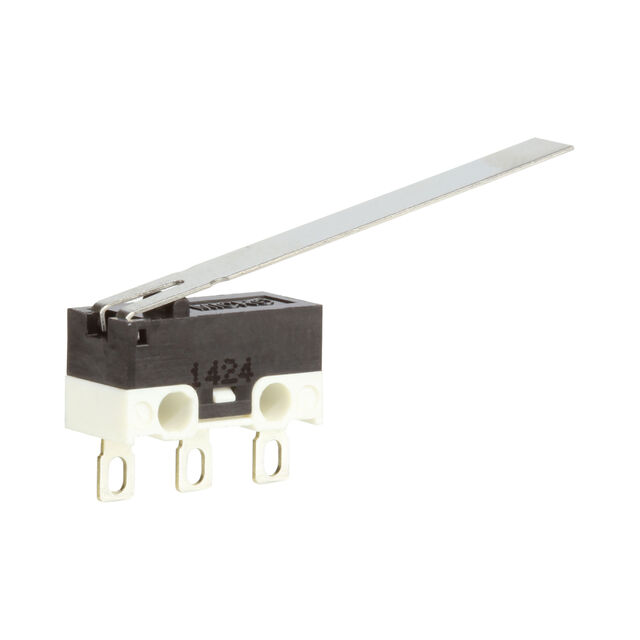

SWITCH SNAP ACTION SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsZX10C10A01 Datasheet +1

ZX40E10J01

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 3A 125V

Deep-Dive with AI

DocumentsZX10C10A01 Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ZX40E Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

ZX10C10A01

Datasheet

Z Series Install Instr

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZX40E10J01	ZX40E Series

Actuator Type	Lever, Straight	Lever, Straight, Simulated Roller, Lever, Round (Pin Plunger)
Circuit	SPDT	SPDT
Current Rating (Amps)	3 A	3 A
Differential Travel	3 mm	0.3 - 3 mm
Differential Travel	0.118 "	0.012 - 0.118 "
Electrical Life	10000 Cycles	10000 Cycles
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount, Through Hole, Through Hole, Right Angle
Operating Force	-	48 - 150 gf
Operating Position	-	8.4 mm
Operating Position	-	0.33 in
Operating Position	-	0.437 "
Operating Position	-	11.1 mm
Operating Position [x]	0.35 in	0.276 - 0.35 in
Operating Position [x]	8.9 mm	7 - 8.9 mm
Operating Temperature [Max]	120 °C	85 - 120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.035 "	0.008 - 0.035 "
Overtravel	0.9 mm	0.2 - 0.9 mm
Pretravel	10.1 mm	1.3 - 10.1 mm
Pretravel	0.4 in	0.051 - 0.4 in
Release Force	-	8 - 20 gf
Switch Function	On-Mom	On-Mom
Termination Style	Solder Lug	Solder Lug, PC Pin
Voltage Rating - AC	125 V	125 V

ZX40E Series

SWITCH SNAP ACTION SPDT 3A 125V

Part	Current Rating (Amps)	Mounting Type	Pretravel	Pretravel	Voltage Rating - AC	Electrical Life	Operating Position [x]	Operating Position [x]	Overtravel	Overtravel	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Differential Travel	Differential Travel	Actuator Type	Circuit	Switch Function	Termination Style	Operating Position	Operating Position	Release Force	Operating Force	Operating Position [custom]	Operating Position [custom]
Honeywell Sensing and Productivity Solutions ZX40E10J01	3 A	Chassis Mount	10.1 mm	0.4 in	125 V	10000 Cycles	0.35 in	8.9 mm	0.035 "	0.9 mm	1000000 Cycles	-40 °C	120 °C	3 mm	0.118 "	Lever, Straight	SPDT	On-Mom	Solder Lug
Honeywell Sensing and Productivity Solutions ZX40E30C01	3 A	Through Hole	3.4 mm	0.134 in	125 V	10000 Cycles			0.025 "	0.6 mm	1000000 Cycles	-40 °C	120 °C	1.3 mm	0.05 in	Lever, Straight	SPDT	On-Mom	PC Pin	8.4 mm	0.33 in	8 gf	48 gf
Honeywell Sensing and Productivity Solutions ZX40E10E01	3 A	Chassis Mount	3.8 mm	0.15 in	125 V	10000 Cycles			0.025 "	0.6 mm	1000000 Cycles	-40 °C	85 °C	1.3 mm	0.05 in	Lever, Simulated Roller	SPDT	On-Mom	Solder Lug			8 gf	55 gf	0.437 "	11.1 mm
Honeywell Sensing and Productivity Solutions ZX40E60A01	3 A	Through Hole, Right Angle	1.3 mm	0.051 in	125 V	10000 Cycles	0.276 in	7 mm	0.008 in	0.2 mm	1000000 Cycles	-40 °C	120 °C	0.3 mm	0.012 "	Round (Pin Plunger)	SPDT	On-Mom	PC Pin			20 gf	150 gf
Honeywell Sensing and Productivity Solutions ZX40E10C01	3 A	Chassis Mount	3.4 mm	0.134 in	125 V	10000 Cycles			0.025 "	0.6 mm	1000000 Cycles	-40 °C	120 °C	1.3 mm	0.05 in	Lever, Straight	SPDT	On-Mom	Solder Lug	8.4 mm	0.33 in	8 gf	48 gf
