43-01004

Active

Amphenol CONEC

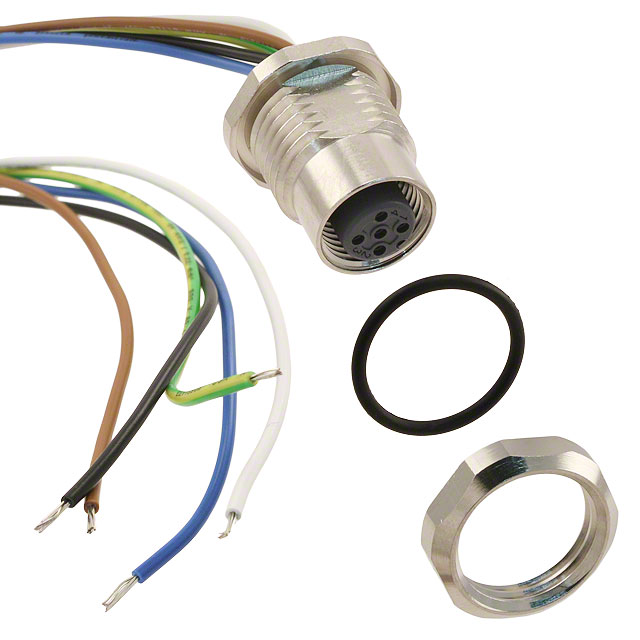

CABLE ASSY, 5P CIR RCPT-FREE END, 500MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Datasheet

43-01004

Active

Amphenol CONEC

CABLE ASSY, 5P CIR RCPT-FREE END, 500MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDrawing EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	43-01004

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Panel Mount
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Individual
Color	Multiple
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1.64 ft
Length [x]	500 mm
Shielding	Unshielded
Usage	Industrial Environments

43-0100 Series

Part	1st Connector Mounting Type	Usage	Shielding	2nd Connector Type	Cable Type	1st Connector Orientation	Assembly Configuration	1st Connector Number of Positions	1st Connector Type	Length [x]	Length [x]	1st Connector Shell Size - Insert	1st Connector Gender	Color	Cable Material	Ingress Protection	1st Connector Number of Positions Loaded
Amphenol CONEC 43-01006	Panel Mount	Industrial Environments	Unshielded	Wire Leads	Individual	A	Standard	4	Plug	1.64 ft	500 mm	M12	Female Sockets	Multiple	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	All
Amphenol CONEC 43-01008	Panel Mount	Industrial Environments	Unshielded	Wire Leads	Individual	A	Standard	8 positions	Plug	1.64 ft	500 mm	M12	Female Sockets	Multiple	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	All
Amphenol CONEC 43-01002	Panel Mount	Industrial Environments	Unshielded	Wire Leads	Individual	A	Standard	8 positions	Plug	1.64 ft	500 mm	M12	Female Sockets	Multiple	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	All
Amphenol CONEC 43-01003	Panel Mount	Industrial Environments	Unshielded	Wire Leads	Individual	A	Standard	4	Plug	1.64 ft	500 mm	M12	Female Sockets	Multiple	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	All
Amphenol CONEC 43-01004	Panel Mount	Industrial Environments	Unshielded	Wire Leads	Individual	A	Standard	5	Plug	1.64 ft	500 mm	M12	Female Sockets	Multiple	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	All
Amphenol CONEC 43-01005	Panel Mount	Industrial Environments	Unshielded	Wire Leads	Individual	A	Standard	8 positions	Plug	1.64 ft	500 mm	M12	Female Sockets	Multiple	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	All
Amphenol CONEC 43-01001	Panel Mount	Industrial Environments	Unshielded	Wire Leads	Individual	A	Standard	5	Plug	1.64 ft	500 mm	M12	Female Sockets	Multiple	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 16.16
		10	$ 14.01
		25	$ 13.28
		50	$ 13.08
		100	$ 11.54
		250	$ 10.77
		500	$ 10.54
Newark	Each	1	$ 11.02
		10	$ 10.19
		25	$ 9.48
		50	$ 8.87
		100	$ 8.37
		250	$ 7.88

Description

General part information

43-0100 Series

Circular Cable Assembly Unshielded 1.64' (500.00mm)

Documents

Technical documentation and resources

Drawing EN

Datasheet
