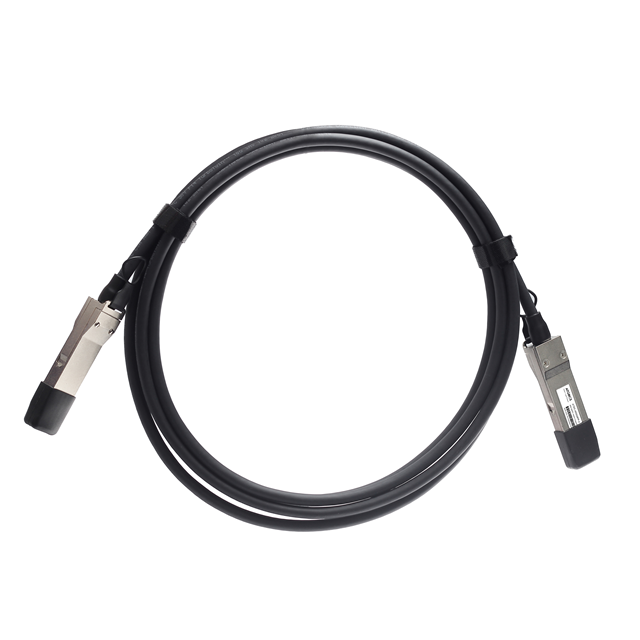

QSFP-H40G-ACU10M-C

Active

ATGBICS

COMPATIBLE DAC 40G 10M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QSFP-H40G-ACU10M-C

Active

ATGBICS

COMPATIBLE DAC 40G 10M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QSFP-H40G-ACU10M-C	QSFP-H40 Series

Cable Connectors	QSFP+ to QSFP+	QSFP+ to QSFP+
Cable Type	Round	Round, Round, Twin Axial
Color	Black	Aqua, Orange, Black
Connector Type	Plug to Plug	Plug to Plug
Fastening Type	Push-Pull	Push-Pull, Latch Lock
Features	Active	Active, Passive
Frequency - Max	-	40 Gbps
Gender	Male to Male	Male to Male
Length	10 m	1.5 - 30 m
Length	32.81 ft	4.92 - 98.43 ft
Length	-	1.64 - 22.97 '
Length	-	1 - 500 m
Number of Positions	-	38
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Shielding	Unshielded	Unshielded
Usage	Data Center Server Rack, Ethernet, Network	Data Center Server Rack, Ethernet, Network
Wire Gauge	28 AWG	24 - 30 AWG
Wire Gauge	-	28 AWG, 30 AWG

QSFP-H40 Series

COMPATIBLE AOC 40G 10M

Part	Usage	Cable Connectors	Cable Type	Fastening Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Color	Length	Length	Features	Shielding	Length [x]	Length [x]	Wire Gauge	Wire Gauge
ATGBICS QSFP-H40G-AOC10M-C	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	Round	Push-Pull	Plug to Plug	70 °C	0 °C	Male to Male	Aqua, Orange	10 m	32.81 ft	Active	Unshielded
ATGBICS QSFP-H40G-AOC7M-C	Network	QSFP+ to QSFP+	Round	Push-Pull	Plug to Plug			Male to Male				Active	Unshielded	22.97 '	7 m
ATGBICS QSFP-H40G-CU3M-C	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	Round	Push-Pull	Plug to Plug	70 °C	0 °C	Male to Male	Black			Passive	Unshielded	9.84 ft	3 m	28 AWG, 30 AWG
ATGBICS QSFP-H40G-AOC30M-C	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	Round	Push-Pull	Plug to Plug	70 °C	0 °C	Male to Male	Aqua, Orange	30 m	98.43 ft	Active	Unshielded
ATGBICS QSFP-H40G-AOC1M-C	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	Round	Push-Pull	Plug to Plug	70 °C	0 °C	Male to Male	Aqua, Orange			Active	Unshielded	3.28 ft	1 m
ATGBICS QSFP-H40G-AOC20M-C	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	Round	Push-Pull	Plug to Plug	70 °C	0 °C	Male to Male	Aqua, Orange	20 m	65.62 ft	Active	Unshielded
ATGBICS QSFP-H40G-CU1M-C	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	Round	Push-Pull	Plug to Plug	70 °C	0 °C	Male to Male	Black			Passive	Unshielded	3.28 ft	1 m		30 AWG
ATGBICS QSFP-H40G-CU7M-C	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	Round	Push-Pull	Plug to Plug	70 °C	0 °C	Male to Male	Black			Passive	Unshielded	22.97 '	7 m		24 AWG
ATGBICS QSFP-H40G-AOC2M-C	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	Round	Push-Pull	Plug to Plug	70 °C	0 °C	Male to Male				Active	Unshielded	6.56 ft	2 m
ATGBICS QSFP-H40G-ACU10M-C	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	Round	Push-Pull	Plug to Plug	70 °C	0 °C	Male to Male	Black	10 m	32.81 ft	Active	Unshielded				28 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 496.00
		50	$ 471.20
		150	$ 446.40
		1000	$ 421.60
	Retail Package	1	$ 422.00
		100	$ 400.90
		1000	$ 379.80

Description

General part information

QSFP-H40 Series

Position QSFP+ to QSFP+ Plug to Plug 32.81' (10.00m) Black Unshielded
