3107Z 0105000

Active

Belden Inc.

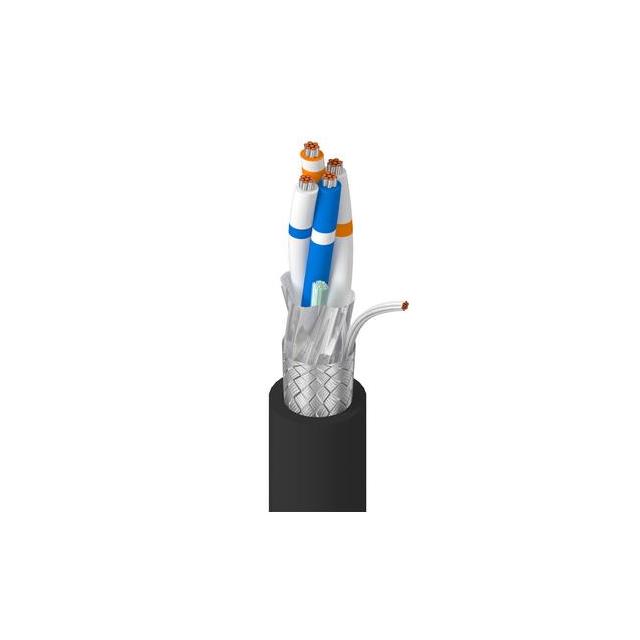

MULTI-PAIR 4COND 22AWG BLK

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 22AWG BLK

Technical Specifications

Parameters and characteristics for this part

Specification	3107Z 0105000

Cable Type	Multi-Pair
Conductor Insulation	Foam High Density Polyethylene (FHDPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire, UV Resistant
Jacket (Insulation) Diameter	0.44 in
Jacket (Insulation) Diameter	11.18 mm
Jacket Color	Black
Number of Conductors	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	22 AWG

Part	Cable Type	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Number of Conductors	Voltage	Conductor Material	Shield Material	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Jacket Color	Features	Conductor Insulation	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 3107Z 0105000	Multi-Pair	0.44 in	11.18 mm	4	300 V	Copper Tinned	Aluminum Copper Tinned	65 % 100 %	-20 C	60 °C	22 AWG	Black	Drain Wire UV Resistant	Foam High Density Polyethylene (FHDPE)	Braid Foil	7	30 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 10.50

General part information

4 (2 Pair Twisted) Conductor Multi-Pair Cable Black 22 AWG Foil, Braid 5000' (1524.0m)
