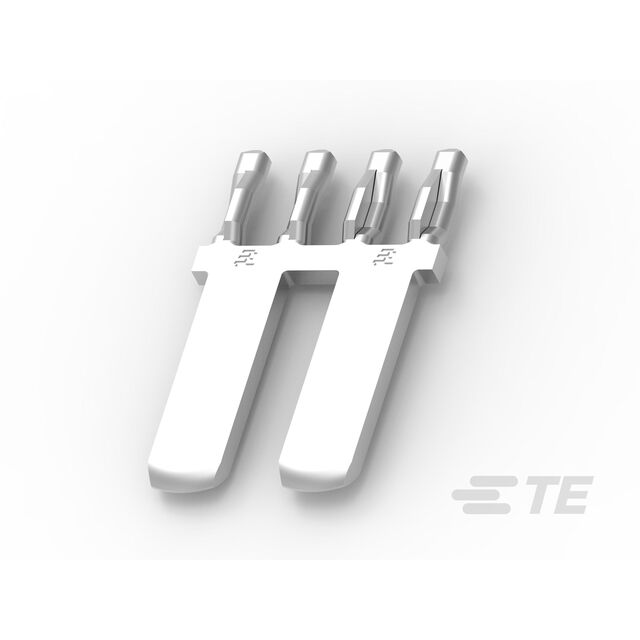

1-1452688-3
ActiveTE Connectivity Raychem Cable Protection
TAB 2.8X0.8 WITH ACTION PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1452688-3
ActiveTE Connectivity Raychem Cable Protection
TAB 2.8X0.8 WITH ACTION PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1452688-3 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper Tin |
| Gender | Male |
| Insulation | Non-Insulated |
| Length - Overall [x] | 15.4 mm |
| Length - Overall [x] | 0.606 in |
| Mounting Type | Through Hole |
| Tab Length | 9.4 mm |
| Tab Length | 0.37 in |
| Tab Thickness | 0.031 " |
| Tab Thickness | 0.79 mm |
| Tab Width | 2.79 mm |
| Tab Width | 0.11 " |
| Terminal Type | Standard |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.08 | |||
| Tape & Reel (TR) | 25000 | $ 0.07 | ||
| 50000 | $ 0.07 | |||
Description
General part information
1452688 Series
0.110" (2.79mm) Quick Connect Male Press-Fit Connector Non-Insulated
