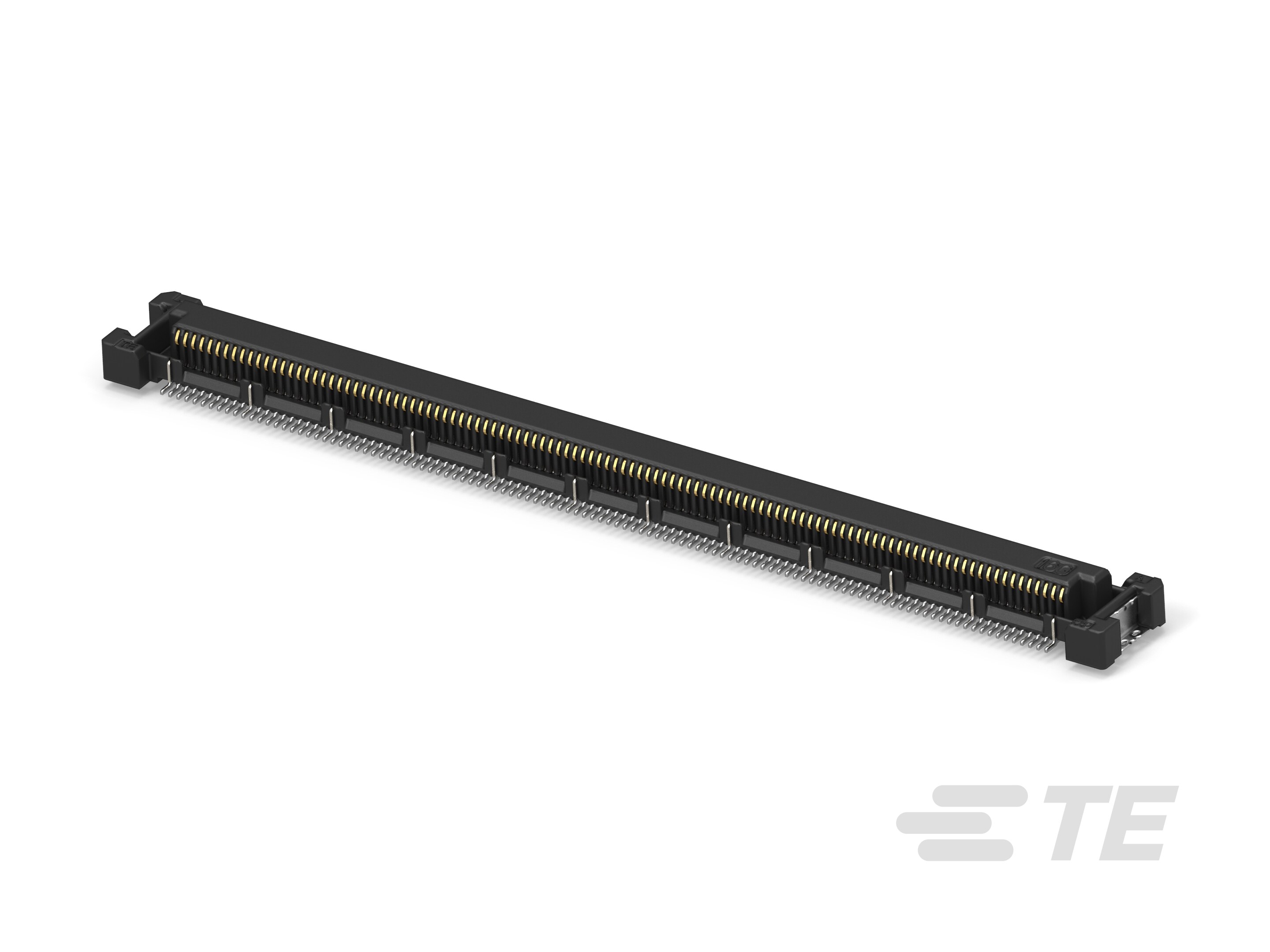

Specification	2357739-2

Connector Type	Center Strip Contacts, Receptacle
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Features	Board Guide
Height Above Board	0.128 in
Mated Stacking Height	4 mm
Mounting Type	Surface Mount
Number of Positions	220
Number of Rows	2
Pitch	0.02 in

2357739 Series

Part	Contact Finish	Features	Number of Positions	Pitch	Mated Stacking Height	Mounting Type	Height Above Board	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Connector Type	Number of Rows
TE Connectivity AMP Connectors 2357739-2	Gold	Board Guide	220	0.02 in	4 mm	Surface Mount	0.128 in	0	Flash	Flash	Center Strip Contacts Receptacle	2
TE Connectivity AMP Connectors 2357739-1	Gold	Board Guide	220	0.02 in	4 mm	Surface Mount	0.128 in	0	Flash	Flash	Center Strip Contacts Receptacle	2
