31-5800
ActiveAmphenol RF
CONN BNC PLUG STR 50 OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
31-5800
ActiveAmphenol RF
CONN BNC PLUG STR 50 OHM CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 31-5800 |
|---|---|
| Body Finish | Nickel |
| Body Material | Zinc Die Cast |
| Cable Group | RG-58 Plenum, Belden 88240, 89907 |
| Cable Group | 122 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polymethylpentene (PMP) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |

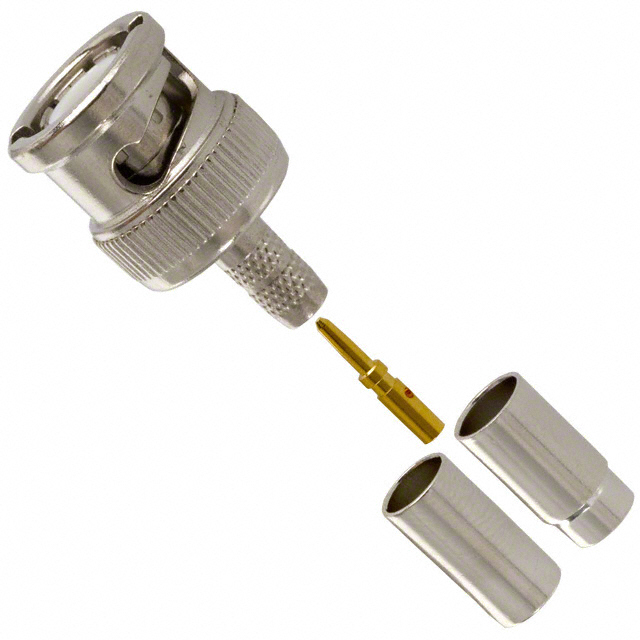

| Includes | 1 Connector, 1 Contact, 2 Ferrules |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.38 | |
| 10 | $ 4.88 | |||
| 25 | $ 4.63 | |||
| 50 | $ 4.52 | |||
| 100 | $ 4.30 | |||
| 250 | $ 3.77 | |||
| 500 | $ 3.66 | |||
| 1000 | $ 3.12 | |||
| 2500 | $ 2.90 | |||
Description
General part information
31-580 Series
BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
