S-1137A2J-I6T2U

Obsolete

ABLIC Inc.

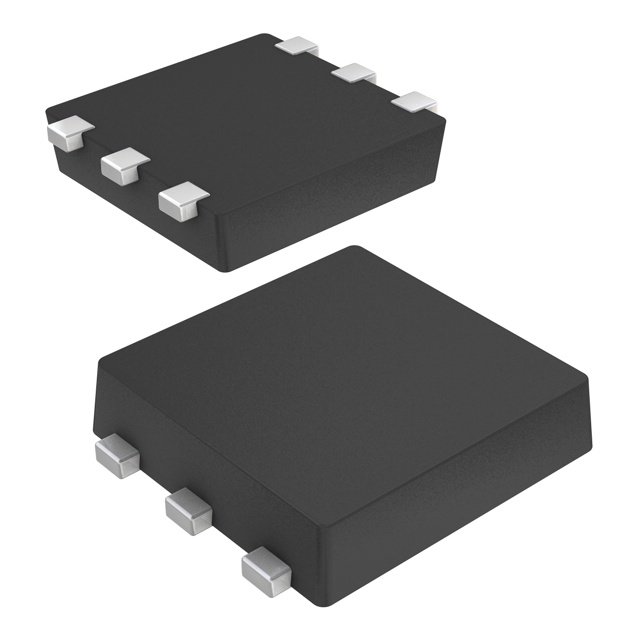

IC REG LINEAR 2.85V 300MA SNT6A

Deep-Dive with AI

Search across all available documentation for this part.

S-1137A2J-I6T2U

Obsolete

ABLIC Inc.

IC REG LINEAR 2.85V 300MA SNT6A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	S-1137A2J-I6T2U	S-1137 Series

Control Features	Soft Start, Enable	Soft Start, Enable
Current - Output	300 mA	300 mA
Current - Quiescent (Iq)	1 µA	1 µA
Current - Supply (Max) [Max]	65 µA	65 µA
Mounting Type	Surface Mount	Surface Mount
Number of Regulators	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	Positive	Positive
Output Type	1.81 mOhm	1.81 mOhm
Package / Case	6-SMD, Flat Leads	6-SMD, Flat Leads, SC-74A, SOT-753, SOT-89-5/6
Protection Features	Over Current	Over Current
PSRR	70 dB	70 dB
Supplier Device Package	SNT-6A	SNT-6A, SOT-23-5, SOT-89-5
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Output (Min/Fixed)	2.85 V	1.2 - 3.5 V
Voltage Dropout (Max) [Max]	0.31 V	0.31 - 0.67 V

S-1137 Series

IC REG LINEAR 1.8V 300MA SNT6A

Part	Supplier Device Package	Voltage Dropout (Max) [Max]	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Quiescent (Iq)	PSRR	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Output Configuration	Current - Output	Mounting Type	Control Features	Number of Regulators	Output Type	Current - Supply (Max) [Max]
ABLIC Inc. S-1137B18-I6T2U	SNT-6A	0.42 V	Over Current	85 °C	-40 °C	6-SMD, Flat Leads	1 µA	70 dB	5.5 V	1.8 V	Positive	300 mA	Surface Mount	Enable, Soft Start	1	1.81 mOhm	65 µA
ABLIC Inc. S-1137A28-I6T2U	SNT-6A	0.31 V	Over Current	85 °C	-40 °C	6-SMD, Flat Leads	1 µA	70 dB	5.5 V	2.8 V	Positive	300 mA	Surface Mount	Enable, Soft Start	1	1.81 mOhm	65 µA
ABLIC Inc. S-1137A33-I6T2U	SNT-6A	0.31 V	Over Current	85 °C	-40 °C	6-SMD, Flat Leads	1 µA	70 dB	5.5 V	3.3 V	Positive	300 mA	Surface Mount	Enable, Soft Start	1	1.81 mOhm	65 µA
ABLIC Inc. S-1137A12-I6T2U	SNT-6A	0.67 V	Over Current	85 °C	-40 °C	6-SMD, Flat Leads	1 µA	70 dB	5.5 V	1.2 V	Positive	300 mA	Surface Mount	Enable, Soft Start	1	1.81 mOhm	65 µA
ABLIC Inc. S-1137A2J-I6T2U	SNT-6A	0.31 V	Over Current	85 °C	-40 °C	6-SMD, Flat Leads	1 µA	70 dB	5.5 V	2.85 V	Positive	300 mA	Surface Mount	Enable, Soft Start	1	1.81 mOhm	65 µA
ABLIC Inc. S-1137C18-M5T1U	SOT-23-5	0.42 V	Over Current	85 °C	-40 °C	SC-74A, SOT-753	1 µA	70 dB	5.5 V	1.8 V	Positive	300 mA	Surface Mount	Enable, Soft Start	1	1.81 mOhm	65 µA
ABLIC Inc. S-1137A12-M5T1U	SOT-23-5	0.67 V	Over Current	85 °C	-40 °C	SC-74A, SOT-753	1 µA	70 dB	5.5 V	1.2 V	Positive	300 mA	Surface Mount	Enable, Soft Start	1	1.81 mOhm	65 µA
ABLIC Inc. S-1137D35-M5T1U	SOT-23-5	0.31 V	Over Current	85 °C	-40 °C	SC-74A, SOT-753	1 µA	70 dB	5.5 V	3.5 V	Positive	300 mA	Surface Mount	Enable, Soft Start	1	1.81 mOhm	65 µA
ABLIC Inc. S-1137B35-M5T1U	SOT-23-5	0.31 V	Over Current	85 °C	-40 °C	SC-74A, SOT-753	1 µA	70 dB	5.5 V	3.5 V	Positive	300 mA	Surface Mount	Enable, Soft Start	1	1.81 mOhm	65 µA
ABLIC Inc. S-1137B15-I6T2U	SNT-6A	0.47 V	Over Current	85 °C	-40 °C	6-SMD, Flat Leads	1 µA	70 dB	5.5 V	1.5 V	Positive	300 mA	Surface Mount	Enable, Soft Start	1	1.81 mOhm	65 µA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

S-1137 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SNT-6A
