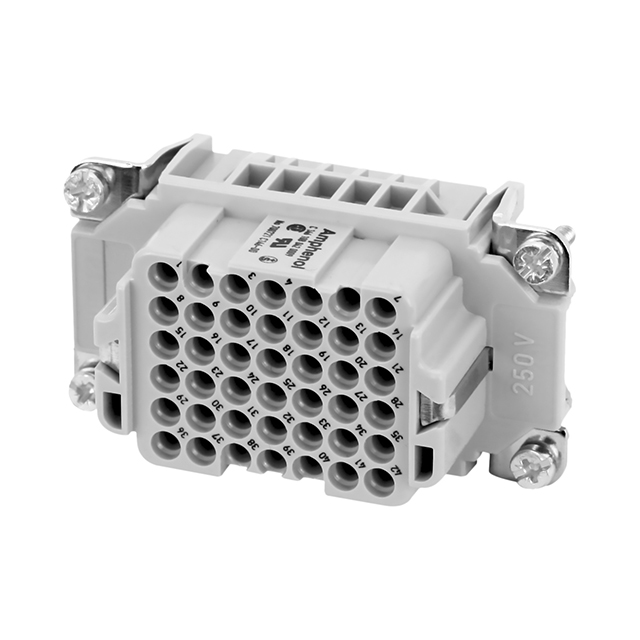

C14610B0420009

Active

Amphenol Tuchel Industrial

INSERT FEMALE 42POS+1GND CRIMP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT FEMALE 42POS+1GND CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	C14610B0420009

Color	Gray
Connector Type	Insert without Contacts
Contact Type	DD, M, C146 D, heavy\|mate®
Current Rating (Amps)	8.5 A
Gender	Female
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Number of Positions	42+Ground
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E10
Termination Style	Crimp
Voltage Rating	250 VDC

Part	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Material Flammability Rating	Voltage Rating	Termination Style	Housing Material	Gender	Current Rating (Amps)	Number of Positions	Size	Connector Type
Amphenol Tuchel Industrial C14610B0420009	C146 D DD heavy\|mate® M	100 °C	-40 °C	Gray	UL94 V-0	250 VDC	Crimp	Polybutylene Terephthalate (PBT)	Female	8.5 A	42+Ground	E10	Insert without Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 16.67

General part information

Female Insert without Contacts Gray 42+Ground Position Crimp
