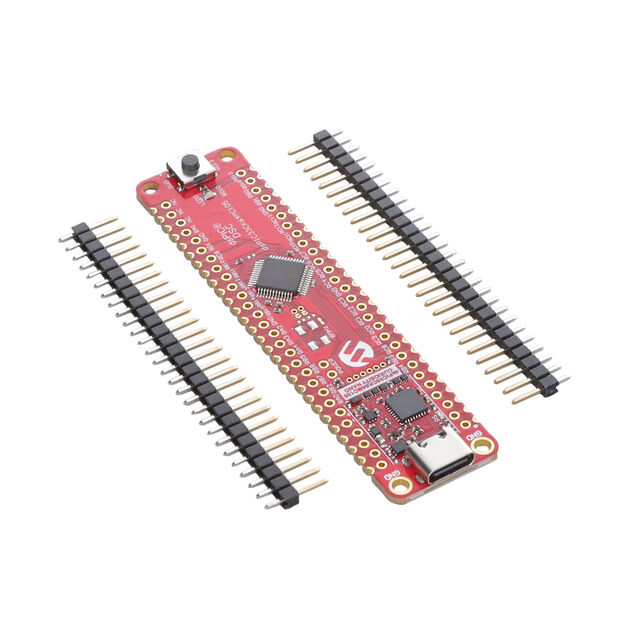

EV88G73A
ActiveEVAL KIT, CURIOSITY NANO, 16BIT, DSPIC33 ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
EV88G73A
ActiveEVAL KIT, CURIOSITY NANO, 16BIT, DSPIC33 ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EV88G73A | DSPIC33CK64MC105 Series |
|---|---|---|
| - | - | |
| Board Type | Evaluation Platform | Evaluation Platform |
| Connectivity | - | LINbus, I2C, IrDA, SPI, UART/USART |
| Contents | Board(s) | Board(s) |
| Core Processor | dsPIC | dsPIC |
| Core Size | - | 16-Bit |
| Data Converters | - | 1 |
| Data Converters | - | 12 b |
| Data Converters | - | 12 b |
| Data Converters | - | 15 |
| Mounting Type | Fixed | Fixed, Surface Mount |
| Number of I/O | - | 39 I/O |
| Operating Temperature | - | 85 - 125 °C |
| Operating Temperature | - | -40 °C |
| Oscillator Type | - | Internal |
| Package / Case | - | 48-TQFP, 48-UFQFN Exposed Pad |
| Peripherals | - | QEI, Smart Card, PWM, POR, Brown-out Detect/Reset, Motor Control PWM, DMA, WDT |
| Platform | Curiosity Nano | Curiosity Nano |
| Program Memory Size | - | 64 KB |
| Program Memory Type | - | FLASH |
| RAM Size | - | 8 K |
| Speed | - | 100 MHz |
| Suggested Programming Environment | MPLAB X | MPLAB X |
| Supplier Device Package | - | 48-TQFP (7x7), 48-UQFN (6x6) |
| Type | MCU 16-Bit | MCU 16-Bit |
| Utilized IC / Part | dsPIC33CK64MC105 | dsPIC33CK64MC105 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
DSPIC33CK64MC105 Series
100 MHz High Performance DSC
| Part | Core Processor | Type | Mounting Type | Platform | Utilized IC / Part | Contents | Board Type | Suggested Programming Environment | Operating Temperature [Max] | Operating Temperature [Min] | Number of I/O | Program Memory Type | Oscillator Type | Peripherals | Supplier Device Package | Data Converters [custom] | Data Converters [custom] | Data Converters [custom] | Data Converters [custom] | RAM Size | Program Memory Size | Speed | Connectivity | Core Size | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology EV88G73A | |||||||||||||||||||||||||
Microchip Technology EV88G73A | dsPIC | MCU 16-Bit | Fixed | Curiosity Nano | dsPIC33CK64MC105 | Board(s) | Evaluation Platform | MPLAB X | |||||||||||||||||
Microchip Technology DSPIC33CK64MC105-I/PT | dsPIC | Surface Mount | 85 °C | -40 °C | 39 I/O | FLASH | Internal | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, Smart Card, WDT | 48-TQFP (7x7) | 1 | 12 b | 12 b | 15 | 8 K | 64 KB | 100 MHz | I2C, IrDA, LINbus, SPI, UART/USART | 16-Bit | 48-TQFP | ||||||
Microchip Technology DSPIC33CK64MC105-E/M4 | dsPIC | Surface Mount | 125 °C | -40 °C | 39 I/O | FLASH | Internal | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, Smart Card, WDT | 48-UQFN (6x6) | 1 | 12 b | 12 b | 15 | 8 K | 64 KB | 100 MHz | I2C, IrDA, LINbus, SPI, UART/USART | 16-Bit | 48-UFQFN Exposed Pad | ||||||
Microchip Technology DSPIC33CK64MC105-I/M4 | dsPIC | Surface Mount | 85 °C | -40 °C | 39 I/O | FLASH | Internal | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, Smart Card, WDT | 48-UQFN (6x6) | 1 | 12 b | 12 b | 15 | 8 K | 64 KB | 100 MHz | I2C, IrDA, LINbus, SPI, UART/USART | 16-Bit | 48-UFQFN Exposed Pad | ||||||
Microchip Technology DSPIC33CK64MC105T-I/M4 | dsPIC | Surface Mount | 85 °C | -40 °C | 39 I/O | FLASH | Internal | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, Smart Card, WDT | 48-UQFN (6x6) | 1 | 12 b | 12 b | 15 | 8 K | 64 KB | 100 MHz | I2C, IrDA, LINbus, SPI, UART/USART | 16-Bit | 48-UFQFN Exposed Pad | ||||||
Microchip Technology DSPIC33CK64MC105T-I/PT | dsPIC | Surface Mount | 85 °C | -40 °C | 39 I/O | FLASH | Internal | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, Smart Card, WDT | 48-TQFP (7x7) | 1 | 12 b | 12 b | 15 | 8 K | 64 KB | 100 MHz | I2C, IrDA, LINbus, SPI, UART/USART | 16-Bit | 48-TQFP | ||||||
Microchip Technology DSPIC33CK64MC105-E/M4 | |||||||||||||||||||||||||
Microchip Technology DSPIC33CK64MC105-E/PT | dsPIC | Surface Mount | 125 °C | -40 °C | 39 I/O | FLASH | Internal | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, Smart Card, WDT | 48-TQFP (7x7) | 1 | 12 b | 12 b | 15 | 8 K | 64 KB | 100 MHz | I2C, IrDA, LINbus, SPI, UART/USART | 16-Bit | 48-TQFP | ||||||
Microchip Technology DSPIC33CK64MC105T-I/M4 |
Description
General part information
DSPIC33CK64MC105 Series
Microchip’s dsPIC33CK64MC10X family of Digital Signal Controllers (DSCs) features a single 100 MHz dsPIC® DSC core with integrated DSP and enhanced on-chip peripherals. These DSCs enable the design of motor control, advanced sensing and control, touch, general purpose high-performance and robust applications.
In the motor control segment, this family is well suited for cost competitive automotive, consumer and industrial applications. The dsPIC33CK64MC105 family of DSCs are ideal for the control of BLDC, PMSM, ACIM, SR and stepper motors. The high level of peripheral integration on the dsPIC33CK64MC105 enable applications to implement power factor correction (PFC) and Motor Control using a single DSC.
With [core independent touch](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/dspic-dscs/applications/capacitive-touch/) implemented using hardware peripherals, this family is well-suited for simple and complex touch-sensing applications. The high-performance DSCs available in 32/64KB flash and small packages offer a cost-effective solution for real-time capacitive touch applications.
