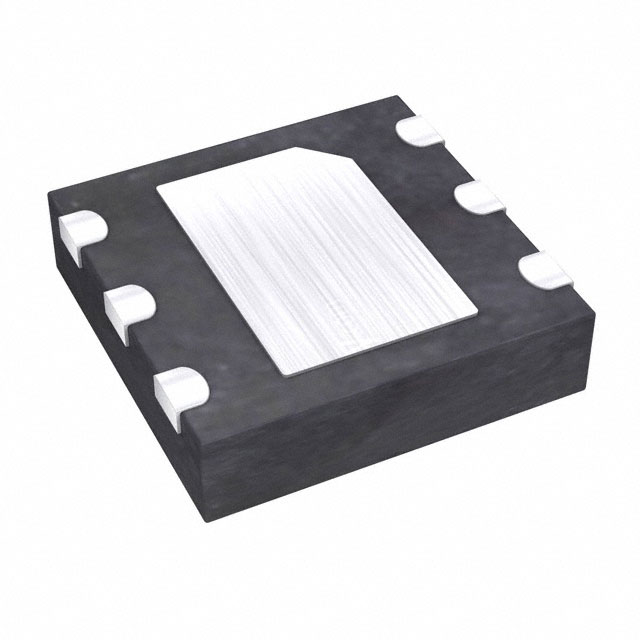

DS1375T+

Active

Analog Devices Inc./Maxim Integrated

IC RTC CLK/CALENDAR I2C 6TDFN

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IC RTC CLK/CALENDAR I2C 6TDFN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DS1375T+	DS1375 Series

Current - Timekeeping (Max)	0.5 µA	0.5 µA
Features	Leap Year, Square Wave Output, Alarm	Leap Year, Square Wave Output, Alarm
Interface	I2C, 2-Wire Serial	I2C, 2-Wire Serial
Memory Size	16 B	16 B
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Supplier Device Package	6-TDFN (3x3)	6-TDFN (3x3)
Time Format	HH:MM:SS (12/24 hr)	HH:MM:SS (12/24 hr)
Type	Clock/Calendar	Clock/Calendar
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	1.7 V	1.7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

IC RTC CLK/CALENDAR I2C 6TDFN

Part	Features	Time Format	Interface	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size	Type	Supplier Device Package	Current - Timekeeping (Max)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
Analog Devices Inc./Maxim Integrated DS1375T+	Alarm, Leap Year, Square Wave Output	HH:MM:SS (12/24 hr)	2-Wire Serial, I2C	5.5 V	1.7 V	16 B	Clock/Calendar	6-TDFN (3x3)	0.5 µA	Surface Mount	85 °C	-40 °C
Analog Devices Inc./Maxim Integrated DS1375T+T&R	Alarm, Leap Year, Square Wave Output	HH:MM:SS (12/24 hr)	2-Wire Serial, I2C	5.5 V	1.7 V	16 B	Clock/Calendar	6-TDFN (3x3)	0.5 µA	Surface Mount	85 °C	-40 °C

General part information

Real Time Clock (RTC) IC Clock/Calendar 16B I2C, 2-Wire Serial 6-WDFN Exposed Pad
