Description Specifications Series Pricing CAD Documents

Description

General part information

WP59 Series

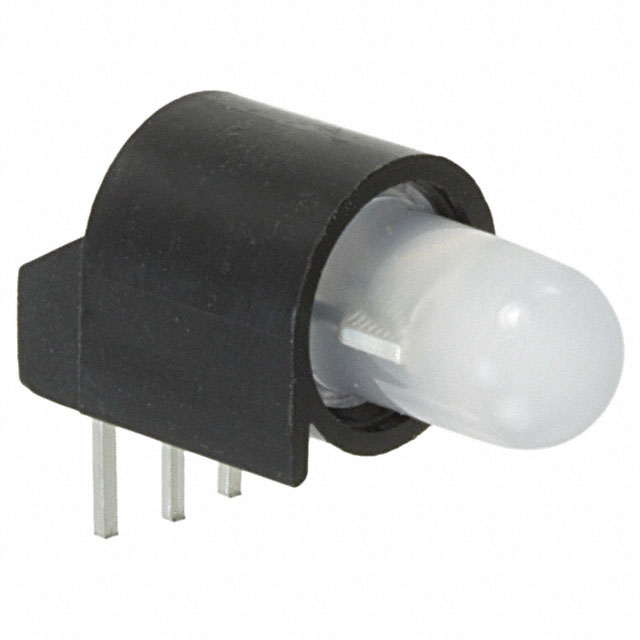

LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Red Diffused, White 2.2V Green, 2V Red 25mA Green, 30mA Red Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle

Technical Specifications

Parameters and characteristics for this part

Specification	WP59CB/EGW

Color	Green, Red
Configuration	Single
Current (Green)	25 mA
Current (Red)	30 mA
Current Colors	Green, Red
Lens Size	5 mm
Lens Size (Code)	T-1 3/4
Lens Style	Round, Domed Top
Lens Type	White, Diffused
Millicandela Rating (Green)	60 mcd
Millicandela Rating (Red)	40 mcd
Millicandela Rating Colors	Green, Red
Mounting Type	Through Hole, Right Angle
Viewing Angle	60 °
Voltage Rating - Color	Red, Green
Voltage Rating (Green)	2.2 V
Voltage Rating (Red)	2 V
Wavelength - Peak (1)	565 nm
Wavelength - Peak (2)	627 nm

WP59 Series

Part	Current - Test (Green)	Current - Test Colors	Current - Test (Red)	Lens Color	Color	Wavelength - Peak Colors	Wavelength - Peak (Green)	Wavelength - Peak (Red)	Millicandela Rating Colors	Millicandela Rating (Green)	Millicandela Rating (Red)	Height (Max)	Package Leads	Package Name	Lens Size	Lens Size (Code)	Viewing Angle	Size / Dimension Diameter	Configuration	Voltage - Forward (Vf) (Typ) (Red)	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Green)	Mounting Type	Wavelength - Dominant Color	Wavelength - Dominant (Green)	Wavelength - Dominant (Red)	Lens Style	Lens Transparency	Voltage - Forward (Vf) (Typ) (Value 2)	Voltage - Forward (Vf) (Typ) (Value 1)	Millicandela Rating (Yellow)	Wavelength - Dominant (Yellow)	Wavelength - Dominant (Primary)	Wavelength - Dominant (Secondary)	Current - Test	Wavelength - Peak (Yellow)	Voltage Rating (Red)	Voltage Rating - Color	Voltage Rating (Yellow)	Wavelength - Peak (1)	Wavelength - Peak (2)	Lens Type	Current Colors	Current (Red)	Current (Yellow)	Voltage Rating (Green)	Current (Green)
Kingbright WP59EGW	20 mA	Green Red	20 mA	White	Green Red	Green Red	565 nm	627 nm	Green Red	60 mcd	40 mcd	11.35 mm	3 Leads	Radial T-1 3/4	5 mm	T-1 3/4	60 °	5 mm	Common Cathode	2 V	Green Red	2.2 V	Through Hole	Green Red	568 nm	617 nm	Domed Top Round	Diffused
Kingbright WP59GYW	20 mA	Green Yellow		White	Green Yellow	Green Yellow	565 nm		Green Yellow	50 mcd		11.35 mm	3 Leads	Radial T-1 3/4	5 mm	T-1 3/4	60 °	5 mm	Common Cathode		Green Yellow		Through Hole	Green Yellow	568 nm		Domed Top Round	Diffused	2.1 V	2.2 V	40 mcd	588 nm	568 nm	588 nm	20 mA	590 nm
Kingbright WP59BL/EYW					Red Yellow				Red Yellow		40 mcd				5 mm	T-1 3/4	60 °		Single				Right Angle Through Hole				Domed Top Round				40 mcd						2 V	Red Yellow	2.1 V	627 nm	590 nm	Diffused White	Red Yellow	30 mA	30 mA
Kingbright WP59SURKCGKW	20 mA	Green Red	20 mA	White	Green Red	Green Red	574 nm	645 nm	Green Red	180 mcd	200 mcd	11.35 mm	3 Leads	Radial T-1 3/4	5 mm	T-1 3/4	30 °	5 mm	Common Cathode	1.95 V	Green Red	2.1 V	Through Hole	Green Red	570 nm	630 nm	Domed Top Round	Diffused
Kingbright WP59CB/EGW					Green Red				Green Red	60 mcd	40 mcd				5 mm	T-1 3/4	60 °		Single				Right Angle Through Hole				Domed Top Round										2 V	Green Red		565 nm	627 nm	Diffused White	Green Red	30 mA		2.2 V	25 mA
Kingbright WP59CB/GYW					Green Yellow				Green Yellow	100 mcd					5 mm	T-1 3/4	60 °		Single				Through Hole				Domed Top Round				40 mcd							Green Yellow	2.1 V	565 nm	590 nm	Diffused White	Green Yellow		30 mA	2.2 V	25 mA
Kingbright WP59EGW/CA	20 mA	Green Red	20 mA	White	Green Red	Green Red	565 nm	627 nm	Green Red	8 mcd	6 mcd	11.35 mm	3 Leads	Radial T-1 3/4	5 mm	T-1 3/4	60 °	5 mm	Common Anode	2 V	Green Red	2.2 V	Through Hole	Green Red	568 nm	625 nm	Domed Top Round	Diffused
Kingbright WP59EGC	20 mA	Green Red	20 mA	Colorless	Green Red	Green Red	565 nm	627 nm	Green Red	120 mcd	100 mcd	11.35 mm	3 Leads	Radial T-1 3/4	5 mm	T-1 3/4	24 °	5 mm	Common Cathode	2 V	Green Red	2.2 V	Through Hole	Green Red	568 nm	617 nm	Domed Top Round	Clear
Kingbright WP59BL/EGW					Green Red				Green Red	60 mcd	40 mcd				5 mm	T-1 3/4	30 °		Single				Right Angle Through Hole				Domed Top Round										2 V	Green Red		565 nm	627 nm	Diffused White	Green Red	20 mA		2.2 V	20 mA
Kingbright WP59BL/GYW					Green Yellow				Green Yellow	100 mcd					5 mm	T-1 3/4	30 °		Single				Right Angle Through Hole				Domed Top Round				40 mcd							Green Yellow	2.1 V	565 nm	590 nm	Diffused White	Green Yellow		30 mA	2.2 V	25 mA
