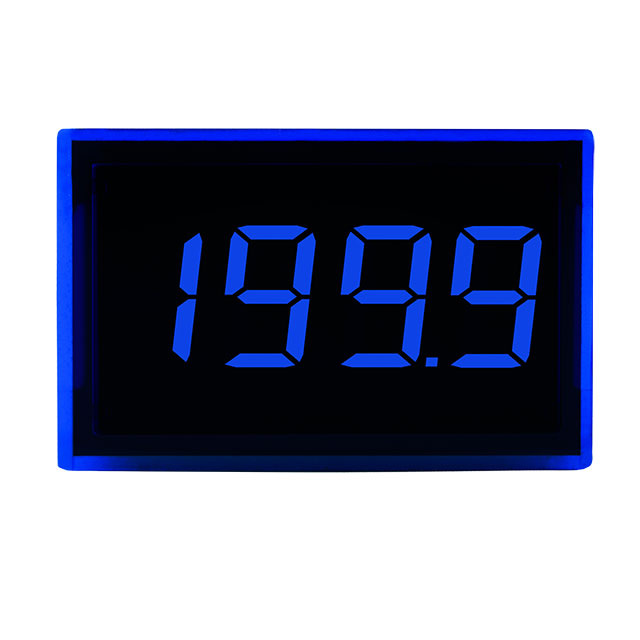

SP 300-BLUE

Active

Lascar Electronics

VOLTMETER 0-200MVDC LED PNL MT

Search across all available documentation for this part.

Active

Lascar Electronics

VOLTMETER 0-200MVDC LED PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	SP 300-BLUE

Display Characters - Height	9.4 mm
Display Characters - Height	0.37 in
Display Type	LCD - Red Characters, Backlight
Measuring Range [Max]	0.2 VDC
Measuring Range [Min]	-200 mV
Measuring Type	Voltage
Number of Characters Per Row	3.5
Panel Cutout Dimensions [x]	34 mm
Panel Cutout Dimensions [y]	21.3 mm
Termination Style	PC Pin
Type	Voltmeter
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

VOLTMETER 0-200MVDC LED PNL MT

Part	Measuring Type	Type	Measuring Range [Min]	Measuring Range [Max]	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Type	Number of Characters Per Row	Display Characters - Height	Display Characters - Height	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
Lascar Electronics SP 300-BLUE	Voltage	Voltmeter	-200 mV	0.2 VDC	PC Pin	4.75 V	5.25 V	LCD - Red Characters, Backlight	3.5	9.4 mm	0.37 in	34 mm	21.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Voltmeter LCD - Red Characters, Backlight Display Panel Mount
