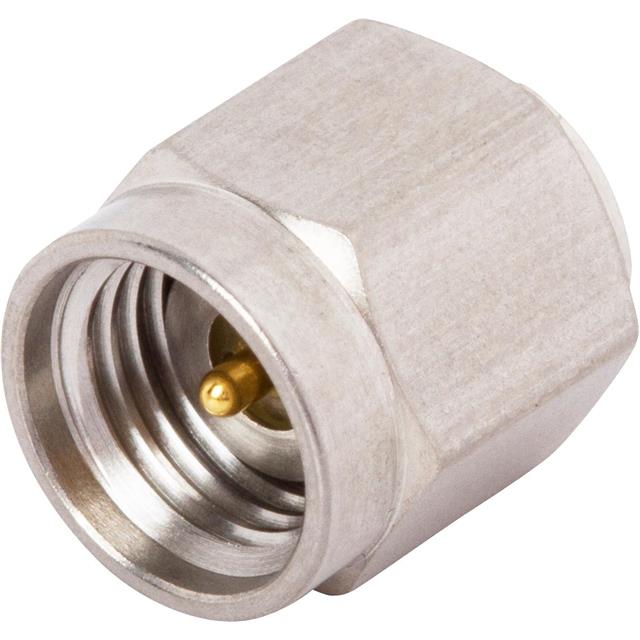

SF8015-6002
ActiveAmphenol SV Microwave
CONN TERMINATR PLUG 2.92MM 50OHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF8015-6002
ActiveAmphenol SV Microwave
CONN TERMINATR PLUG 2.92MM 50OHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF8015-6002 |
|---|---|
| Body Material | Stainless Steel |
| Connector Style | 2.92 mm |
| Connector Type | Male Pin, Plug |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Dielectric Material | Polyetherimide (PEI) |
| Frequency - Max [Max] | 40 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging, Cap |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 155.13 | |
| 10 | $ 142.35 | |||
| 25 | $ 136.88 | |||
| 50 | $ 132.32 | |||
Description
General part information
SF8015 Series
Terminator Coax Connector Plug, Male Pin 2.92mm 50 Ohms
