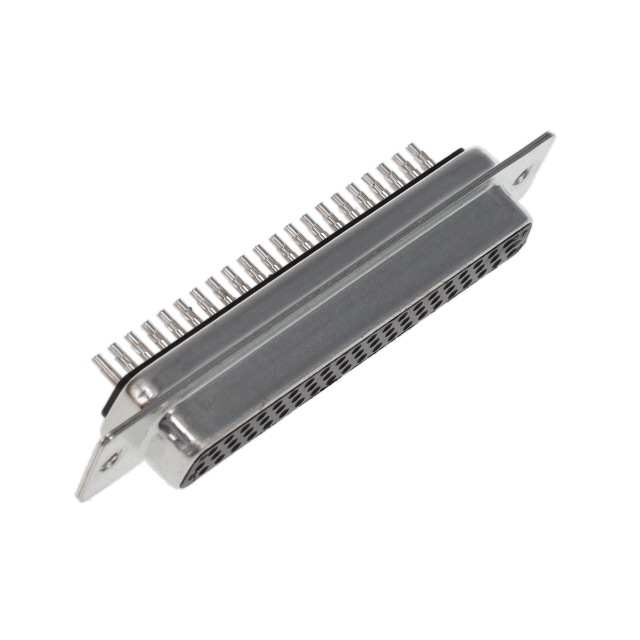

L77HDC62S

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD RCPT 62P SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L77HDC62S

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD RCPT 62P SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77HDC62S

Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	62
Number of Rows	3
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4
Voltage Rating	250 VDC

L77HDC62 Series

Part	Termination	Number of Rows	Voltage Rating	Flange Feature	Connector Style	Contact Form	Number of Positions	Connector Type	Contact Finish Thickness	Mounting Type	Contact Type	Backset Spacing	Backset Spacing	Color	Current Rating (Amps)	Dielectric Material	Contact Material	Material Flammability Rating	Features	Shell Size, Connector Layout	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (Commercial Products) L77HDC62SD1CH4F	Solder	3	250 VDC	Female Screwlock (4-40) Mating Side	D-Sub High Density	Stamped	62	Receptacle Female Sockets	Flash	Through Hole Right Angle	Signal	8.89 mm	0.35 in	Black	3 A	Thermoplastic Glass Filled	Brass	UL94 V-0	Board Lock Grounding Tabs	4	105 ░C	-55 °C	Gold
Amphenol ICC (Commercial Products) L77HDC62S		3	250 VDC	Housing/Shell (Unthreaded)	D-Sub High Density	Stamped	62	Receptacle Female Sockets	Flash	Free Hanging (In-Line)	Signal				3 A	Thermoplastic Glass Filled	Phosphor Bronze	UL94 V-0		4	155 °C	-55 °C	Gold
Amphenol ICC (Commercial Products) L77HDC62SVF		3	250 VDC	Female Screwlock (4-40) Mating Side	D-Sub High Density	Stamped	62	Receptacle Female Sockets	Flash	Free Hanging (In-Line)	Signal				3 A	Thermoplastic Glass Filled	Phosphor Bronze	UL94 V-0		4	155 °C	-55 °C	Gold
Amphenol ICC (Commercial Products) L77HDC62SOL2C309	Solder	3	250 VDC	Housing/Shell (Unthreaded)	D-Sub High Density	Stamped	62	Receptacle Female Sockets		Through Hole	Signal			Black	3 A	Thermoplastic Glass Filled	Brass	UL94 V-0		4	105 ░C	-55 °C	Gold	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L77HDC62SD1CH4R	Solder	3	250 VDC	4-40 Board Side	D-Sub High Density	Stamped	62	Receptacle Female Sockets	Flash	Through Hole Right Angle	Signal	8.89 mm	0.35 in	Black	3 A	Thermoplastic Glass Filled	Brass	UL94 V-0	Board Lock Grounding Tabs	4	105 ░C	-55 °C	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.42
		10	$ 3.10
		25	$ 2.94
		40	$ 2.87
		80	$ 2.73
		240	$ 2.39
		440	$ 2.32
		960	$ 1.98
		2400	$ 1.85

Description

General part information

L77HDC62 Series

62 Position D-Sub, High Density Receptacle, Female Sockets Connector
