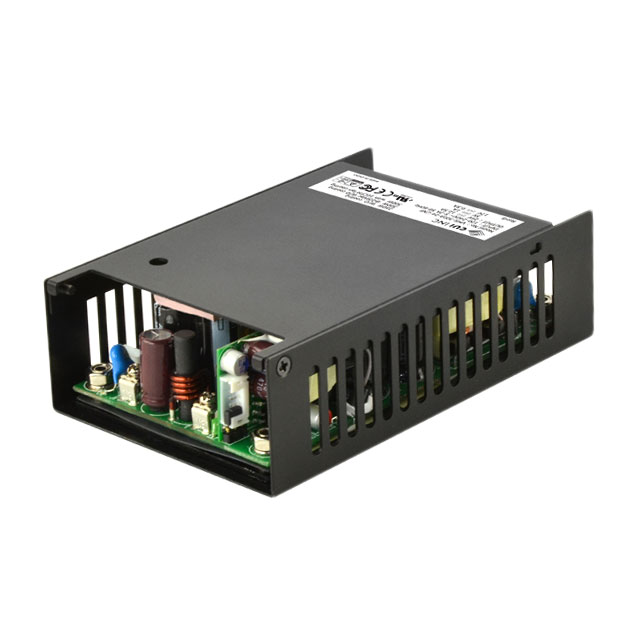

VMS-300A-24-CNF

Active

CUI Inc.

AC/DC CONVERTER 24V 200W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Power Supply Safety Standards, Agencies, and Marks

VMS-300A-24-CNF

Active

CUI Inc.

AC/DC CONVERTER 24V 200W

Deep-Dive with AI

DocumentsDatasheet Power Supply Safety Standards, Agencies, and Marks

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VMS-300A-24-CNF

Applications	Medical
Approval Agency	TUV, CB Scheme, EN, IEC, UL
Current - Output 1	8.33 A
Efficiency	93.5 %
Features	Standby Output, Universal Input, PFC, Adjustable Output, Remote On/Off, Remote Sense
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-40 °C
Power (Watts)	300 W
Power (Watts)	200 W
Size / Dimension [x]	5.35 "
Size / Dimension [x]	136 mm
Size / Dimension [y]	3.46 "
Size / Dimension [y]	88 mm
Size / Dimension [z]	40.4 mm
Size / Dimension [z]	1.59 "
Standard Number	61000-3-2, 61000-3-3, 55011 Class B, 60601-1
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

VMS-300 Series

Part	Efficiency	Applications	Features	Voltage - Isolation	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Standard Number	Power (Watts)	Approval Agency	Type	Number of Outputs	Mounting Type	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Voltage - Output 2	Current - Output 2
CUI Inc. VMS-300-36-CF	84 %	Medical	Adjustable Output PFC Remote On/Off Standby Output Universal Input	4000 V	8.33 A	90 VAC	264 VAC	70 °C	0 °C	3.2 in	127 mm	50.8 mm	81.3 mm	5 in	2 "	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	300 W	CB Scheme CSA EN IEC TUV	Enclosed	1	Chassis Mount	36 V
CUI Inc. VMS-300A-12-1	92.5 %	Medical	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 V	16.67 A	90 VAC	264 VAC	80 ¯C	-40 °C	3 "	127 mm			5 in	1.38 in	55011 Class B 60601-1 61000-3-2 61000-3-3	200 W	CB Scheme EN IEC TUV UL	Open Frame	1	Chassis Mount	12 V	35.1 mm	76.2 mm	300 W
CUI Inc. VMS-300-48-CF	84 %	Medical	Adjustable Output PFC Remote On/Off Standby Output Universal Input	4000 V	6.25 A	90 VAC	264 VAC	70 °C	0 °C	3.2 in	127 mm	50.8 mm	81.3 mm	5 in	2 "	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	300 W	CB Scheme CSA EN IEC TUV	Enclosed	1	Chassis Mount	48 V
CUI Inc. VMS-300-D1224	85 %	Medical	Adjustable Output PFC Remote On/Off Standby Output Universal Input	4000 V	10 A	90 VAC	264 VAC	70 °C	0 °C	3.2 in	127 mm	38.1 mm	81.3 mm	5 in	1.5 "	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	120 W 240 W	CB Scheme CSA EN IEC TUV	Open Frame	2	Chassis Mount	12 V				24 V	5 A
CUI Inc. VMS-300A-12-CNF-1	92.5 %	Medical	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 V	16.67 A	90 VAC	264 VAC	80 ¯C	-40 °C	3.46 "	136 mm	40.4 mm	88 mm	5.35 "	1.59 "	55011 Class B 60601-1 61000-3-2 61000-3-3	200 W	CB Scheme EN IEC TUV UL	Enclosed	1	Chassis Mount	12 V			300 W
CUI Inc. VMS-300A-12	92.5 %	Medical	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 V	16.67 A	90 VAC	264 VAC	80 ¯C	-40 °C	3 "	127 mm			5 in	1.38 in	55011 Class B 60601-1 61000-3-2 61000-3-3	200 W	CB Scheme EN IEC TUV UL	Open Frame	1	Chassis Mount	12 V	35.1 mm	76.2 mm	300 W
CUI Inc. VMS-300A-24-CNF	93.5 %	Medical	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 V	8.33 A	90 VAC	264 VAC	80 ¯C	-40 °C	3.46 "	136 mm	40.4 mm	88 mm	5.35 "	1.59 "	55011 Class B 60601-1 61000-3-2 61000-3-3	200 W	CB Scheme EN IEC TUV UL	Enclosed	1	Chassis Mount	24 V			300 W
CUI Inc. VMS-300-D1224-CFS	85 %	Medical	Adjustable Output PFC Remote On/Off Standby Output Universal Input	4000 V	10 A	90 VAC	264 VAC	70 °C	0 °C	3.2 in	165.1 mm	40.6 mm	81.3 mm	6.5 in	1.6 "	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	120 W 240 W	CB Scheme CSA EN IEC TUV	Enclosed	2	Chassis Mount	12 V				24 V	5 A
CUI Inc. VMS-300-D1224-CF	85 %	Medical	Adjustable Output PFC Remote On/Off Standby Output Universal Input	4000 V	10 A	90 VAC	264 VAC	70 °C	0 °C	3.2 in	127 mm	50.8 mm	81.3 mm	5 in	2 "	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	120 W 240 W	CB Scheme CSA EN IEC TUV	Enclosed	2	Chassis Mount	12 V				24 V	5 A
CUI Inc. VMS-300-12-CF		Medical	Adjustable Output PFC Remote On/Off Standby Output Universal Input	4000 V	25 A	90 VAC	264 VAC	70 °C	0 °C	3.2 in	127 mm	50.8 mm	81.3 mm	5 in	2 "	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	300 W	CB Scheme CSA EN IEC TUV	Enclosed	1	Chassis Mount	12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 157.79
		5	$ 150.28
		10	$ 122.67
		12	$ 146.35
		25	$ 118.58
		36	$ 141.59
