2829551

Active

Phoenix Contact

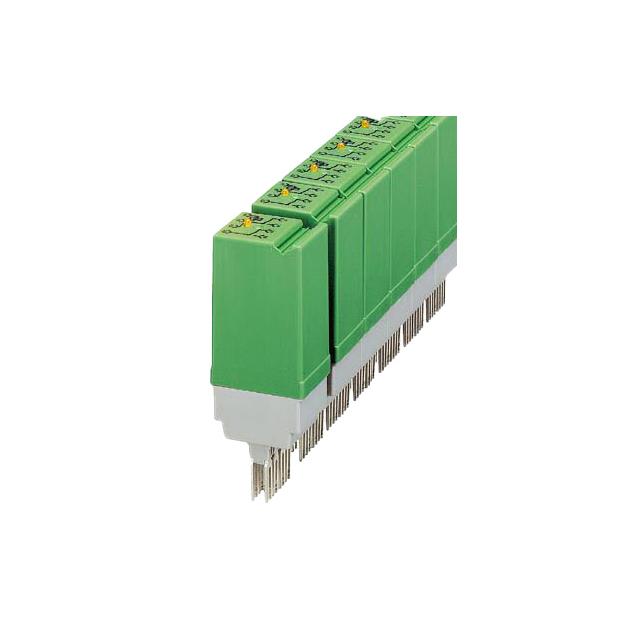

RELAY GEN PURPOSE DPDT 500MA 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 500MA 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2829551	28295 Series

Approval Agency	EAC	GOST, EAC
Coil Current	21 mA	21 mA
Coil Resistance	1.14 kOhms	1.14 - 857.1 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VAC	24 VDC
Contact Form	DPDT (2 Form C)	SPST-NO (1 Form A), DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)	Silver Cadmium Oxide (AgCdO), Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	0.5 A	0.5 - 10 A
Features	Lighted Indicator	Diode, Lighted Indicator
Mounting Type	Socketable	Socketable
Operate Time	9 ms	9 - 13 ms
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-20 C	-20 C
Relay Type	General Purpose	General Purpose
Release Time	10 ms	10 - 15 ms
Switching Voltage	30 VAC, 30 VDC	30 - 250 VAC
Termination Style	Plug In	Plug In

RELAY GEN PURPOSE SPST 10A 24V

Part	Coil Type	Contact Form	Release Time	Contact Material	Mounting Type	Contact Rating (Current)	Coil Resistance	Termination Style	Relay Type	Coil Voltage	Switching Voltage	Operate Time	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Features	Coil Current
Phoenix Contact 2829564	Non Latching	SPST-NO (1 Form A)	15 ms	Silver Cadmium Oxide (AgCdO)	Socketable	10 A	857.1 Ohms	Plug In	General Purpose	24 VDC	250 VAC	13 ms	GOST	50 °C	-20 C	Diode
Phoenix Contact 2829551	Non Latching	DPDT (2 Form C)	10 ms	Gold (Au), Silver Nickel (AgNi)	Socketable	0.5 A	1.14 kOhms	Plug In	General Purpose	24 VAC	30 VAC, 30 VDC	9 ms	EAC	50 °C	-20 C	Lighted Indicator	21 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 211.93

General part information

General Purpose Relay DPDT (2 Form C) Socketable
