794953-2
ActiveTE Connectivity AMP Connectors

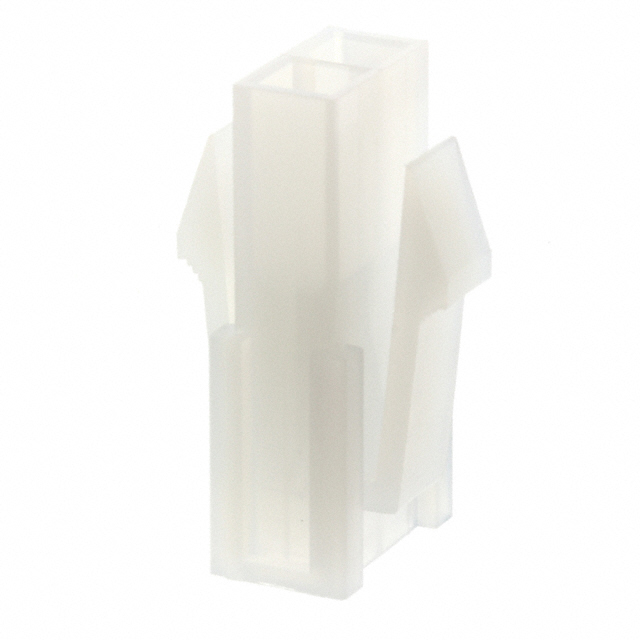

CONN PLUG HSG 2POS PANEL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794953-2
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 2POS PANEL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794953-2 | 794953 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | - | Locking Ramp |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 2 | 2 - 22 positions |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch | - | 4.2 mm |
| Pitch | - | 0.165 in |
| Row Spacing | 4.2 mm | 4.2 mm |
| Row Spacing | 0.165 in | 0.165 in |
794953 Series
CONN PLUG HSG 22POS 4.20MM
| Part | Number of Positions | Insulation Material | Fastening Type | Row Spacing | Row Spacing | Mounting Type | Note | Contact Type | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Pitch [x] | Pitch [x] | Contact Termination | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-794953-2 | 22 positions | Nylon, Polyamide (PA) | Locking Ramp | 4.2 mm | 0.165 in | Panel Mount, Snap-In | Contacts Not Included | Male Pin | 2 | -40 °C | 105 ░C | Plug | 4.2 mm | 0.165 in | Crimp | Natural | |
TE Connectivity AMP Connectors 1-794953-6 | Nylon, Polyamide (PA) | Locking Ramp | 4.2 mm | 0.165 in | Panel Mount, Snap-In | Contacts Not Included | Male Pin | 2 | -40 °C | 105 ░C | Plug | 4.2 mm | 0.165 in | Crimp | Natural | 16 | |
TE Connectivity AMP Connectors 794953-4 | 4 | Nylon, Polyamide (PA) | Locking Ramp | 4.2 mm | 0.165 in | Panel Mount, Snap-In | Contacts Not Included | Male Pin | 2 | -40 °C | 105 ░C | Plug | 4.2 mm | 0.165 in | Crimp | Natural | |
TE Connectivity AMP Connectors 1-794953-8 | 18 | Nylon, Polyamide (PA) | Locking Ramp | 4.2 mm | 0.165 in | Panel Mount, Snap-In | Contacts Not Included | Male Pin | 2 | -40 °C | 105 ░C | Plug | 4.2 mm | 0.165 in | Crimp | Natural | |
TE Connectivity AMP Connectors 2-794953-0 | 20 | Nylon, Polyamide (PA) | Locking Ramp | 4.2 mm | 0.165 in | Panel Mount, Snap-In | Contacts Not Included | Male Pin | 2 | -40 °C | 105 ░C | Plug | 4.2 mm | 0.165 in | Crimp | Natural | |
TE Connectivity AMP Connectors 794953-2 | 2 | Nylon, Polyamide (PA) | 4.2 mm | 0.165 in | Panel Mount, Snap-In | Contacts Not Included | Male Pin | 2 | -40 °C | 105 ░C | Plug | Crimp | Natural | ||||
TE Connectivity AMP Connectors 794953-8 | 8 | Nylon, Polyamide (PA) | Locking Ramp | 4.2 mm | 0.165 in | Panel Mount, Snap-In | Contacts Not Included | Male Pin | 2 | -40 °C | 105 ░C | Plug | 4.2 mm | 0.165 in | Crimp | Natural | |
TE Connectivity AMP Connectors 1-794953-4 | 14 | Nylon, Polyamide (PA) | Locking Ramp | 4.2 mm | 0.165 in | Panel Mount, Snap-In | Contacts Not Included | Male Pin | 2 | -40 °C | 105 ░C | Plug | 4.2 mm | 0.165 in | Crimp | Natural |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.22 | |
| 10 | $ 0.18 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.13 | |||
| 5000 | $ 0.11 | |||
| 10000 | $ 0.09 | |||
Description
General part information
794953 Series
2 Rectangular Connectors - Housings Plug Natural
Documents
Technical documentation and resources
