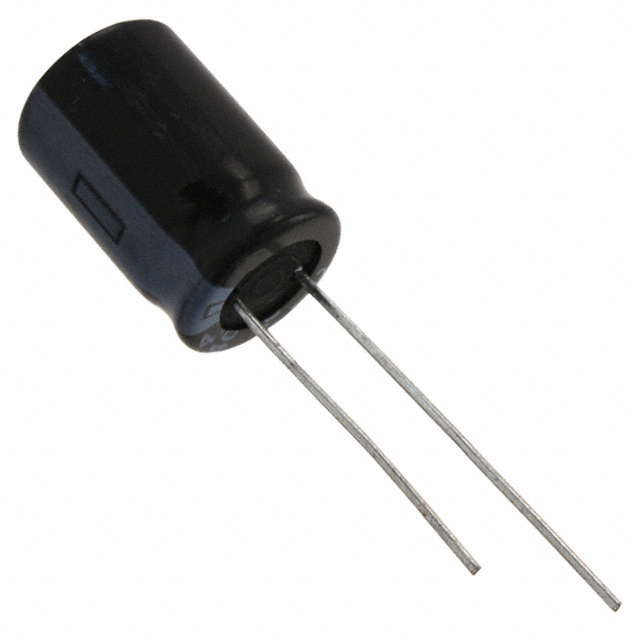

ESH476M100AH2AA

Active

KEMET

CAP ALUM 47UF 20% 100V RADIAL TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 47UF 20% 100V RADIAL TH

Technical Specifications

Parameters and characteristics for this part

Specification	ESH476M100AH2AA

Applications	General Purpose
Capacitance	47 µF
Height - Seated (Max) [Max] [z]	17 mm
Height - Seated (Max) [Max] [z]	0.669 in
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	420 mA
Ripple Current @ Low Frequency	210 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Tolerance	20 %
Voltage - Rated	100 V

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Capacitance	Ripple Current @ High Frequency	Tolerance	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Ripple Current @ Low Frequency	Voltage - Rated	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
KEMET ESH476M100AH2AA	10 mm	0.394 in	2000 Hrs	Polar	-40 °C	105 ░C	Radial Can	47 µF	420 mA	20 %	5 mm	0.197 in	17 mm	0.669 in	Through Hole	210 mA	100 V	General Purpose
KEMET ESH476M050AE3AA	6.3 mm	0.248 in	2000 Hrs	Polar	-40 °C	105 ░C	Radial Can	47 µF	230 mA	20 %	2.5 mm	0.098 in			Through Hole	115 mA	50 VDC	General Purpose	0.492 in	12.5 mm
KEMET ESH476M016AC3AA	5 mm	0.197 "	2000 Hrs	Polar	-40 °C	105 ░C	Radial Can	47 µF	170 mA	20 %	2 mm	0.079 in			Through Hole	85 mA	16 V	General Purpose	0.492 in	12.5 mm
KEMET ESH476M100AH9AA	10 mm	0.394 in	2000 Hrs	Polar	-40 °C	105 ░C	Radial Can	47 µF	277.5 mA	20 %	5 mm	0.197 in			Through Hole	185 mA	100 V	General Purpose	0.551 "		14 mm
KEMET ESH476M010AC3AA	5 mm	0.197 "	2000 Hrs	Polar	-40 °C	105 ░C	Radial Can	47 µF	150 mA	20 %	2 mm	0.079 in			Through Hole	75 mA	10 V	General Purpose	0.492 in	12.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

47 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
