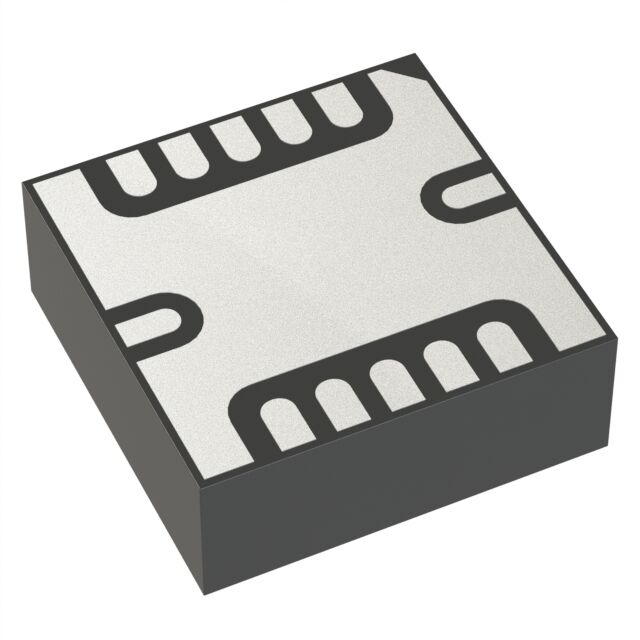

MAAL-011186-TR0500
ActiveMACOM Technology Solutions
IC AMP RADAR 20GHZ-55GHZ 12SMT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAAL-011186-TR0500
ActiveMACOM Technology Solutions
IC AMP RADAR 20GHZ-55GHZ 12SMT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MAAL-011186-TR0500 |
|---|---|
| Current - Supply | 130 mA |
| Frequency [Max] | 55 GHz |
| Frequency [Min] | 20 GHz |
| Gain | 16.5 dBi |
| Mounting Type | Surface Mount |
| Noise Figure | 3.2 dB |
| P1dB | 14 dBm |
| Package / Case | 12-FQFN Exposed Pad |
| RF Type | Radar |
| Supplier Device Package | 12-SMT (5x5) |
| Voltage - Supply | 3.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 76.63 | |
| 10 | $ 67.32 | |||
| 25 | $ 64.43 | |||
| Digi-Reel® | 1 | $ 76.63 | ||
| 10 | $ 67.32 | |||
| 25 | $ 64.43 | |||
| Tape & Reel (TR) | 500 | $ 55.19 | ||
Description
General part information
MAAL-011186 Series
RF Amplifier IC Radar 20GHz ~ 55GHz 12-SMT (5x5)
Documents
Technical documentation and resources
