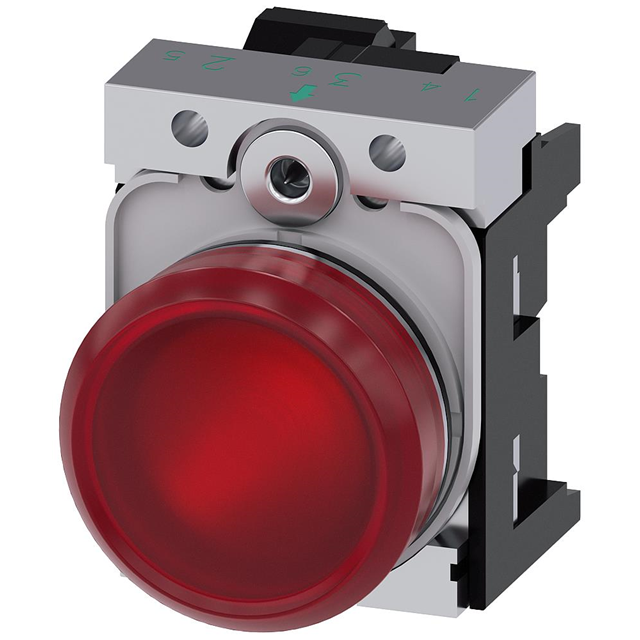

A6X30144364

Active

Siemens

INDICATOR LIGHT. RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A6X30144364

Active

Siemens

INDICATOR LIGHT. RED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 83.50
		10	$ 78.10
		100	$ 71.57

Description

General part information

A6X30144 Series

LED Panel Indicator Red Diffused 24V Spring Terminal

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A6X30144364	A6X30144 Series

Ingress Protection	NEMA 2, IP69K, IP20, IP69, NEMA 3R, NEMA 13, NEMA 4, NEMA 3, IP67, NEMA 4X, NEMA 12, IP66, NEMA 1	NEMA 2, IP69K, IP20, IP69, NEMA 3R, NEMA 13, NEMA 4, NEMA 3, IP67, NEMA 4X, NEMA 12, IP66, NEMA 1
Lamp Color	Red	Amber, Red, White, Clear, Yellow, Green
Lens Color	Red	Amber, Red, White, Colorless, Yellow, Green
Lens Size [diameter]	22 mm	22 - 30 mm
Lens Transparency	Diffused	Diffused, Clear
Millicandela Rating [Max]	1120 mcd	1120 - 1800 mcd
Millicandela Rating [Min]	450 mcd	450 - 900 mcd
Panel Cutout Dimensions	0.88 in	0.88 in
Panel Cutout Dimensions	22.3 mm	22.3 mm
Panel Cutout Shape	Round	Round
Ratings	AC/DC	AC/DC, AC
Termination Style	Spring Terminal	Screw Terminal, Spring Terminal
Type	LED	LED
Voltage	24 V	24 - 230 V

A6X30144 Series

INDICATOR LIGHT. AMBER

Part	Ratings	Millicandela Rating [Max]	Millicandela Rating [Min]	Type	Panel Cutout Shape	Lens Size [diameter]	Termination Style	Ingress Protection	Lens Transparency	Lamp Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Color	Voltage
Siemens A6X30144358	AC/DC	1400 mcd	900 mcd	LED	Round	22 mm	Screw Terminal	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Diffused	Amber	0.88 in	22.3 mm	Amber	24 V
Siemens A6X30144365	AC/DC	1120 mcd	450 mcd	LED	Round	22 mm	Spring Terminal	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Diffused	Red	0.88 in	22.3 mm	Red	24 V
Siemens A6X30144364	AC/DC	1120 mcd	450 mcd	LED	Round	22 mm	Spring Terminal	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Diffused	Red	0.88 in	22.3 mm	Red	24 V
Siemens A6X30144550	AC	1400 mcd	900 mcd	LED	Round	22 mm	Spring Terminal	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Diffused	White	0.88 in	22.3 mm	White	230 V
Siemens A6X30144839	AC/DC	1400 mcd	900 mcd	LED	Round	22 mm	Screw Terminal	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Diffused	White	0.88 in	22.3 mm	White	24 V
Siemens A6X30144554	AC	1400 mcd	900 mcd	LED	Round	22 mm	Screw Terminal	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Clear	Clear	0.88 in	22.3 mm	Colorless	230 V
Siemens A6X30144549	AC	1400 mcd	900 mcd	LED	Round	22 mm	Screw Terminal	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Diffused	White	0.88 in	22.3 mm	White	230 V
Siemens A6X30144540	AC	1120 mcd	450 mcd	LED	Round	22 mm	Spring Terminal	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Diffused	Red	0.88 in	22.3 mm	Red	230 V
Siemens A6X30144356	AC/DC	1400 mcd	900 mcd	LED	Round	22 mm	Screw Terminal	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Diffused	Amber	0.88 in	22.3 mm	Amber	24 V
Siemens A6X30144547	AC	1400 mcd	900 mcd	LED	Round	22 mm	Spring Terminal	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Diffused	Yellow	0.88 in	22.3 mm	Yellow	230 V
