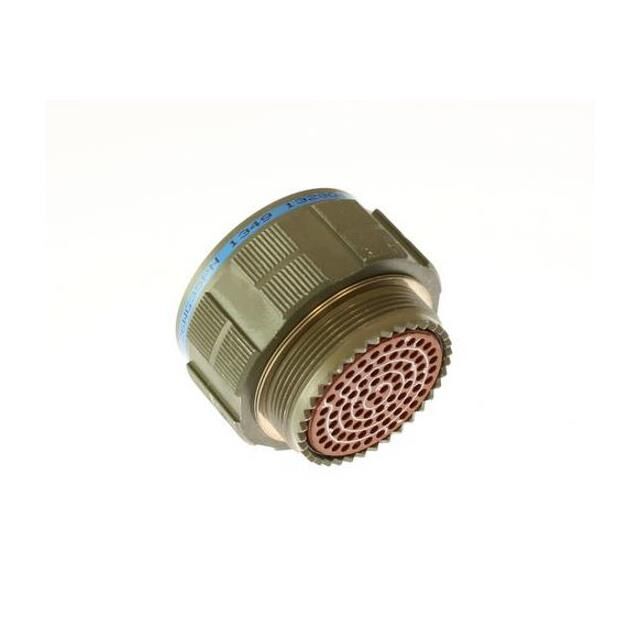

D38999/20SD18HN

Active

Corsair

D38999 SER III RECEPTACLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/20SD18HN

Active

Corsair

D38999 SER III RECEPTACLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	5	$ 156.97
		10	$ 144.41
		50	$ 132.86
		100	$ 122.23
		500	$ 112.45

Description

General part information

D38999/20SD Series

18 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	D38999/20SD18HN	D38999/20SD Series

Applications	Aerospace, Aviation, Military	Aerospace, Aviation, Military
Color	-	Silver
Connector Type	Receptacle, Female Sockets	Receptacle Housing, Receptacle, Female Sockets, Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Contact Type	-	Crimp
Grade	Military	Military
Housing Color	-	Silver
Includes	-	1 pc - 1 Insert Shell
Ingress Protection	Waterproof	Waterproof
Insert Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Note	-	Contacts Not Included
Number of Positions	18	15 - 19
Operating Temperature [Max]	125 °C	125 - 200 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Orientation	N	N
Primary Material	Metal	Metal
Qualification	MIL-DTL-38999 Series III	MIL-DTL-38999 Series III
Shell Finish	-	Nickel
Shell Material	-	Stainless Steel
Shell Size - Insert	-	19
Shell Size - Insert	-	15
Shell Size - Insert [Max]	18	15 - 18
Shell Size - Insert [Min]	15	15
Shell Size, MIL	D	D
Shielding	Shielded	Shielded
Termination	Crimp	Crimp
Type	-	For Female Sockets

D38999/20SD Series

D38999 SER III RECEPTACLE

Part	Note	Primary Material	Contact Type	Ingress Protection	Mounting Feature	Housing Color	Shell Size, MIL	Type	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Connector Type	Orientation	Insert Material	Qualification	Number of Positions	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Grade	Contact Finish - Mating	Shielding	Termination	Contact Material	Applications	Shell Finish	Color	Shell Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Corsair D38999/20SD5PNL	Contacts Not Included	Metal	Crimp	Waterproof	Flange	Silver	D	For Female Sockets	1 pc - 1 Insert Shell	-65 ░C	200 °C	UL94 V-0	Receptacle Housing	N	Thermoplastic
Corsair D38999/20SD19HN		Metal		Waterproof	Flange		D			-65 ░C	125 °C	UL94 V-0	Receptacle, Female Sockets	N	Thermoplastic	MIL-DTL-38999 Series III	19	19	15	Military	Gold	Shielded	Crimp	Copper Alloy	Aerospace, Aviation, Military
Corsair D38999/20SD19PN		Metal		Waterproof	Flange		D			-65 ░C	125 °C	UL94 V-0	Male Pins, Receptacle	N	Thermoplastic	MIL-DTL-38999 Series III	19	19	15	Military	Gold	Shielded	Crimp	Copper Alloy	Aerospace, Aviation, Military	Nickel	Silver	Stainless Steel
Corsair D38999/20SD15SN		Metal		Waterproof	Flange		D			-65 ░C	125 °C	UL94 V-0	Receptacle, Female Sockets	N	Thermoplastic	MIL-DTL-38999 Series III	15			Military	Gold	Shielded	Crimp	Copper Alloy	Aerospace, Aviation, Military	Nickel	Silver	Stainless Steel	15	15
Corsair D38999/20SD18HN		Metal		Waterproof	Flange		D			-65 ░C	125 °C	UL94 V-0	Receptacle, Female Sockets	N	Thermoplastic	MIL-DTL-38999 Series III	18			Military	Gold	Shielded	Crimp	Copper Alloy	Aerospace, Aviation, Military				15	18
