Specification	1-1776302-0

Barrier Type	Enclosed
Bottom Termination	Closed
Color	Natural
Current Rating	40 A
Material - Insulation	Polyamide, PA66, Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Chassis, Panel
Number of Circuits	10
Number of Rows	2
Number of Wire Entries	20
Operating Temperature	100 °C
Pitch	0.472 in
Terminal Block Type	Eurostyle Terminal Strip
Terminal Screw Finish	Non-Hexavalent Chromate, Zinc
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	250 V
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	10 AWG

1776302 Series

Part	Color	Top Termination	Number of Rows	Barrier Type	Bottom Termination	Number of Wire Entries	Current Rating	Terminal Block Type	Number of Circuits	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Voltage Rating	Material Flammability Rating	Terminal Screw Material	Operating Temperature	Terminal Screw Finish	Mounting Type	Material - Insulation	Pitch

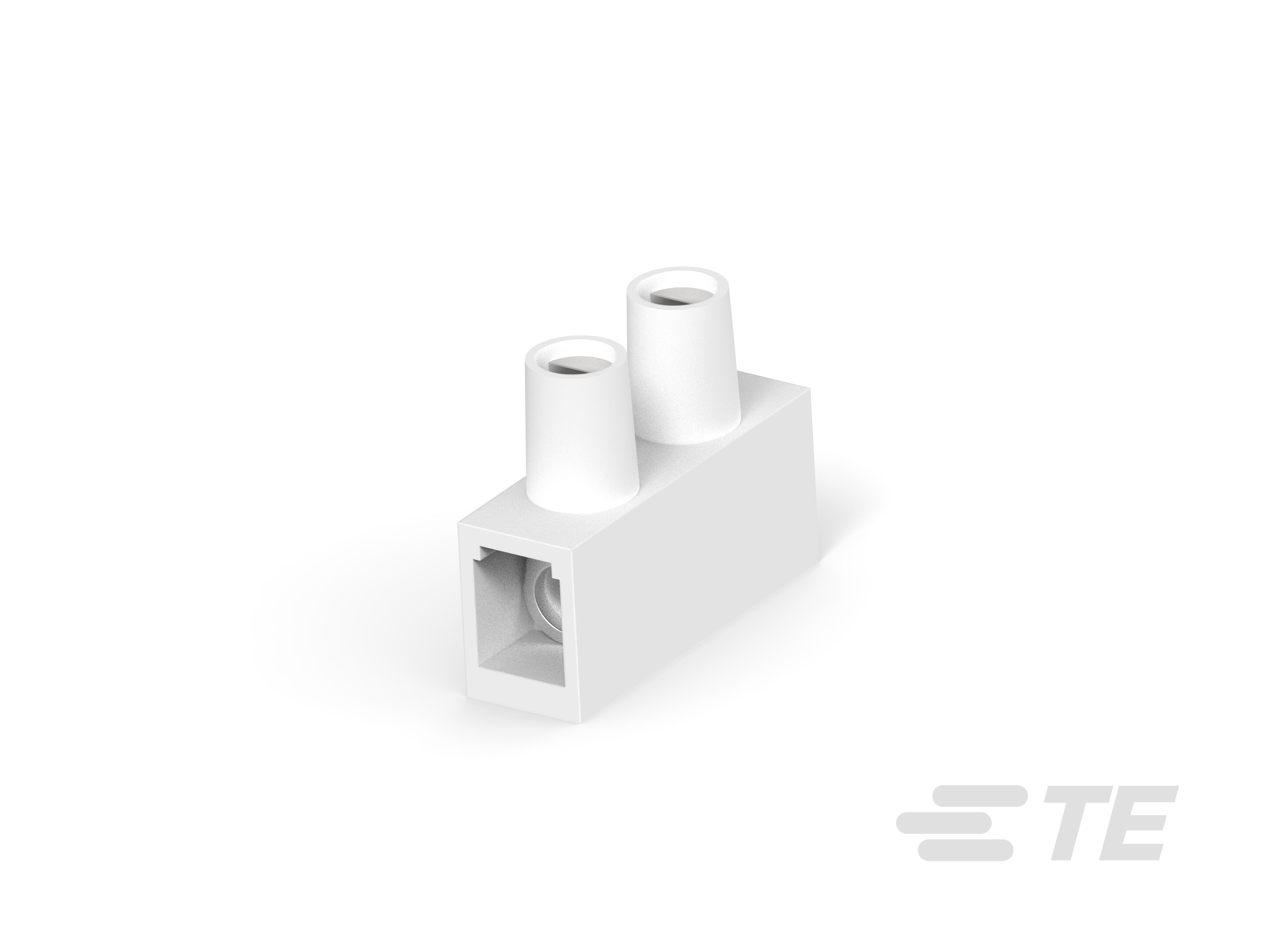

TE Connectivity AMP Connectors 1776302-1	Natural	Screws	2	Enclosed	Closed	2	40 A	Eurostyle Terminal Strip	1	22 AWG	10 AWG	250 V	UL94 V-2	Steel	100 °C	Non-Hexavalent Chromate Zinc	Chassis Panel	Nylon 6/6 PA66 Polyamide
TE Connectivity AMP Connectors 1776302-2	Natural	Screws	2	Enclosed	Closed	4	40 A	Eurostyle Terminal Strip	2	22 AWG	10 AWG	250 V	UL94 V-2	Steel	100 °C	Non-Hexavalent Chromate Zinc	Chassis Panel	Nylon 6/6 PA66 Polyamide	0.472 in
TE Connectivity AMP Connectors 1-1776302-0	Natural	Screws	2	Enclosed	Closed	20	40 A	Eurostyle Terminal Strip	10	22 AWG	10 AWG	250 V	UL94 V-2	Steel	100 °C	Non-Hexavalent Chromate Zinc	Chassis Panel	Nylon 6/6 PA66 Polyamide	0.472 in
TE Connectivity AMP Connectors 1776302-9	Natural	Screws	2	Enclosed	Closed	18	40 A	Eurostyle Terminal Strip	9	22 AWG	10 AWG	250 V	UL94 V-2	Steel	100 °C	Non-Hexavalent Chromate Zinc	Chassis Panel	Nylon 6/6 PA66 Polyamide	0.472 in

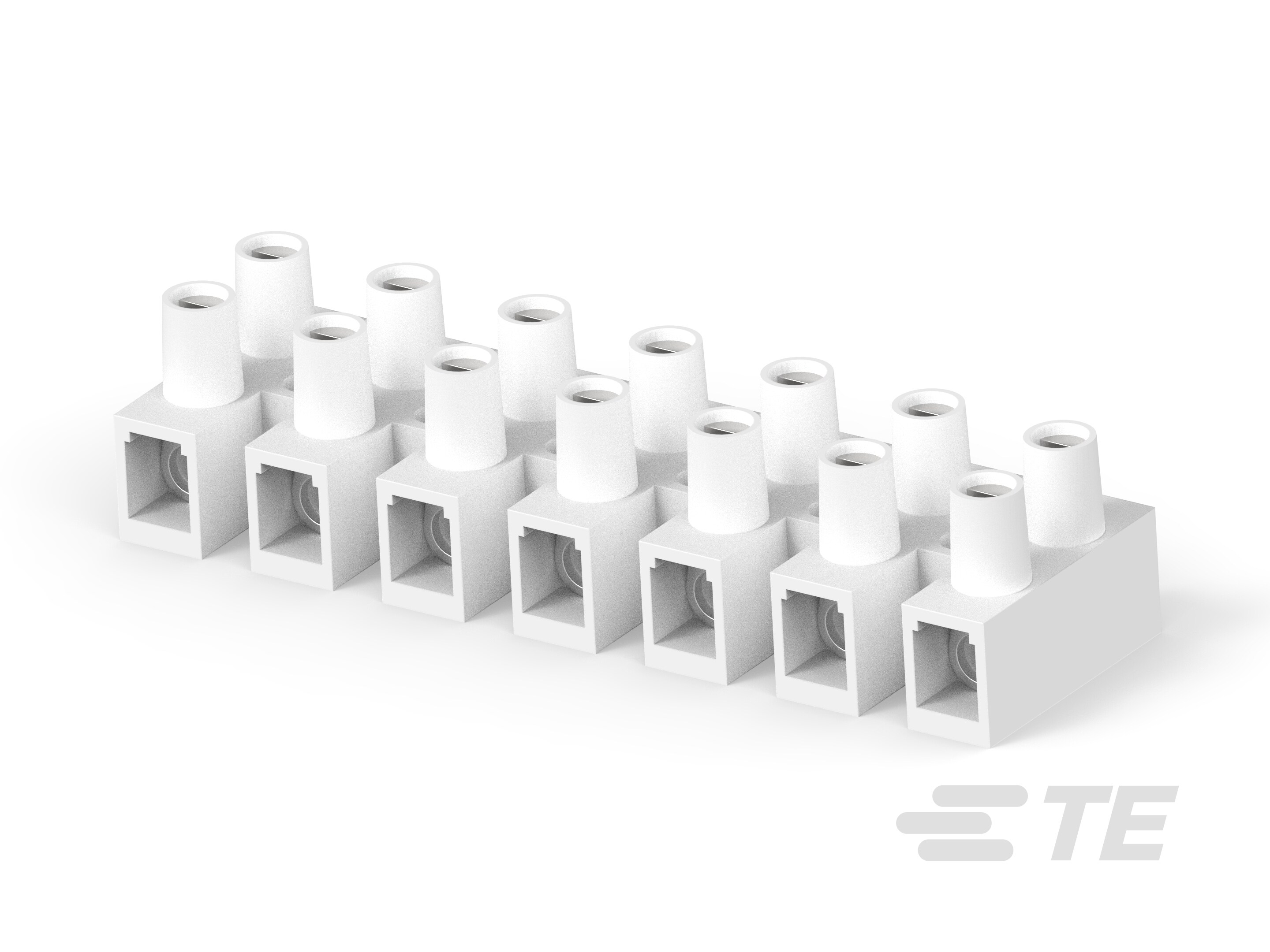

TE Connectivity AMP Connectors 1776302-7	Natural	Screws	2	Enclosed	Closed	14	40 A	Eurostyle Terminal Strip	7	22 AWG	10 AWG	250 V	UL94 V-2	Steel	100 °C	Non-Hexavalent Chromate Zinc	Chassis Panel	Nylon 6/6 PA66 Polyamide	0.472 in
