ACJD Series

Part	Contact Material - Plating	Housing Material	Panel Hole Size	Number of Contacts	Number of Conductors	Gender	Mounting Type	Internal Switch(s)	Shielding	Signal Lines	Insulation Color	Operating Temperature (Min)	Operating Temperature (Max)	Termination	Connector Type

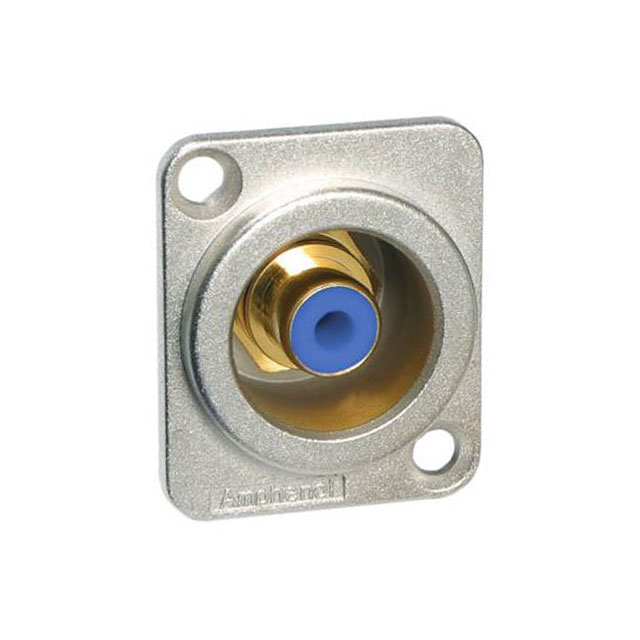

McGill Microwave Systems ACJD-BLU	Gold	Zinc Alloy	0.945 in	2 Contacts	2 Conductors	Female	Panel Mount	Does Not Contain Switch	Unshielded	Mono	Blue	-25 °C	75 °C	Solder Solder Cup	Phone Jack

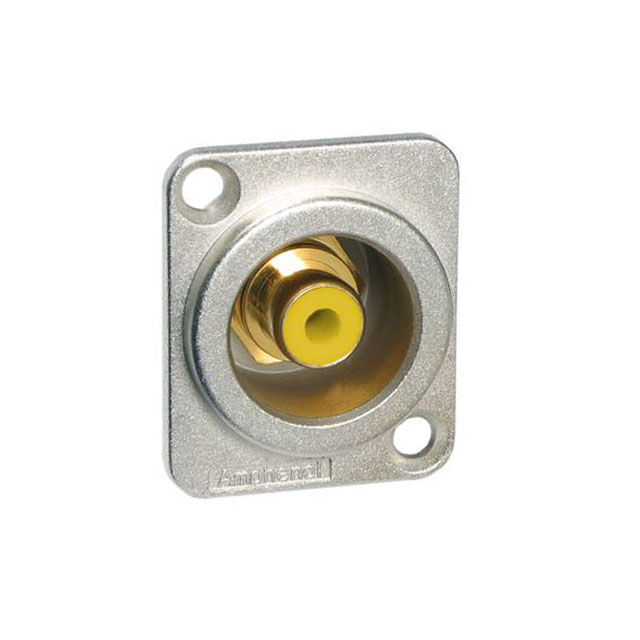

McGill Microwave Systems ACJD-YEL	Gold	Zinc Alloy	0.945 in	2 Contacts	2 Conductors	Female	Panel Mount	Does Not Contain Switch	Unshielded	Mono	Yellow	-25 °C	75 °C	Solder Solder Cup	Phone Jack

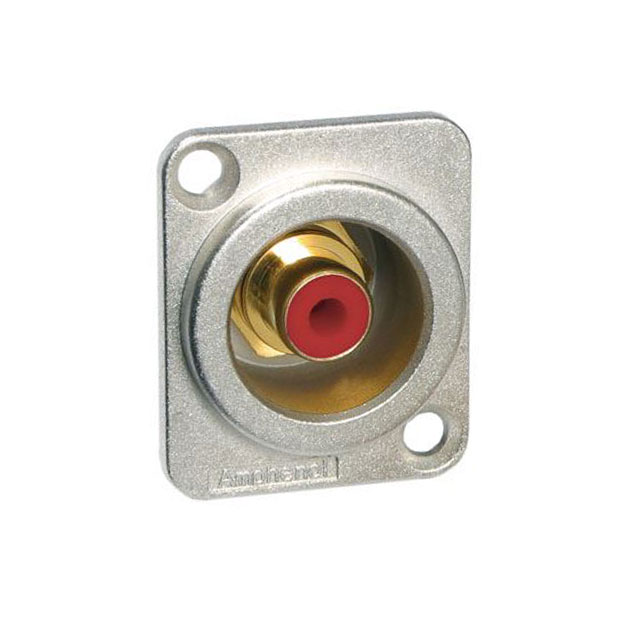

McGill Microwave Systems ACJD-RED	Gold	Zinc Alloy	0.945 in	2 Contacts	2 Conductors	Female	Panel Mount	Does Not Contain Switch	Unshielded	Mono	Red	-25 °C	75 °C	Solder Solder Cup	Phone Jack

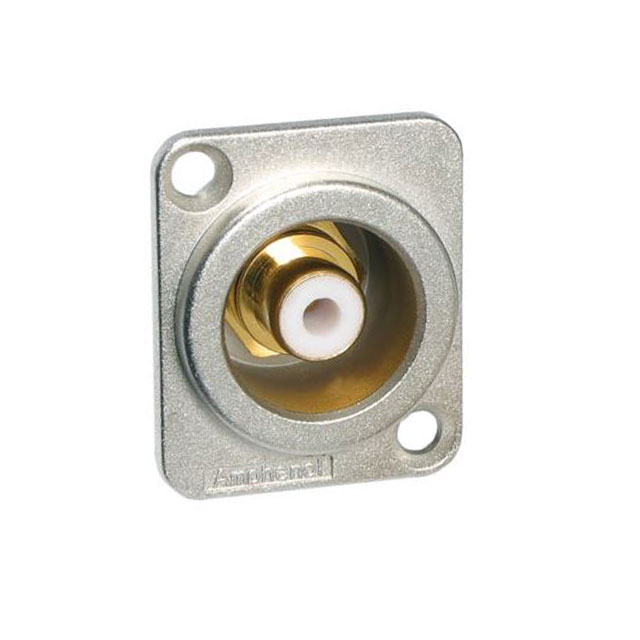

McGill Microwave Systems ACJD-WHT	Gold	Zinc Alloy	0.945 in	2 Contacts	2 Conductors	Female	Panel Mount	Does Not Contain Switch	Unshielded	Mono	White	-25 °C	75 °C	Solder Solder Cup	Phone Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
