AR 40-HZW/TN
ActiveAssmann WSW Components
CONN IC DIP SOCKET 40POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AR 40-HZW/TN
ActiveAssmann WSW Components
CONN IC DIP SOCKET 40POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AR 40-HZW/TN |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Contact Resistance | 4 mOhm |
| Current Rating (Amps) | 3 A |
| Features | Open Frame |
| Housing Material | Thermoplastic, Polyester |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 40 |
| Number of Positions or Pins (Grid) [custom] | 20 |
| Number of Positions or Pins (Grid) [custom] | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Wire Wrap |
| Type | DIP |
| Type | 0.6 in |
| Type | 15.24 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.53 | |
| 12 | $ 5.90 | |||
| 36 | $ 5.57 | |||
| 60 | $ 5.44 | |||
| 108 | $ 5.17 | |||
| 252 | $ 4.62 | |||
| 504 | $ 4.35 | |||
| 1008 | $ 3.81 | |||
| 2508 | $ 3.62 | |||
Description
General part information
AR 40-HZ Series

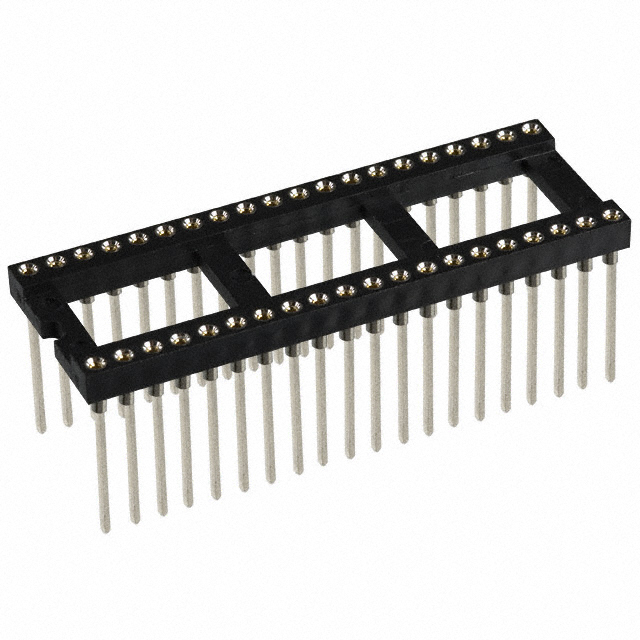

40 (2 x 20) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
