R125609001

Active

Radiall USA, Inc.

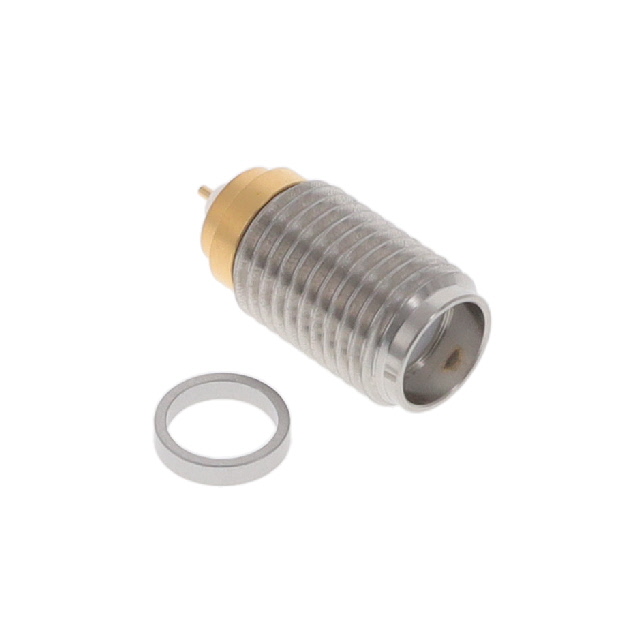

SMA / THREAD-IN JACK RECEPTACLE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / THREAD-IN JACK RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	R125609001

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	26.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Screw
Voltage Rating	500 V

Part	Center Contact Material	Dielectric Material	Voltage Rating	Features	Contact Termination	Shield Termination	Connector Style	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Body Material	Connector Type	Center Contact Plating	Number of Ports	Housing Color	Frequency - Max [Max]	Mounting Type	Mounting Feature	Body Finish
Radiall USA, Inc. R125609001	Beryllium Copper	Polytetrafluoroethylene (PTFE)	500 V	Extended Insulation	Solder	Screw	SMA	500	-65 ░C	165 °C	50 Ohms	Stainless Steel	Female Socket Receptacle	Gold	1	Silver	26.5 GHz	Free Hanging (In-Line)
Radiall USA, Inc. R125603000W	Beryllium Copper	Polytetrafluoroethylene (PTFE)	500 V		Solder Eyelet	Solder	SMA	500	-40 °C	100 °C	50 Ohms	Beryllium Copper	Female Socket Jack	Gold	1	Gold	18 GHz		Bulkhead - Front Side Nut	Gold
Radiall USA, Inc. R125609011	Beryllium Copper	Polytetrafluoroethylene (PTFE)	500 V		Solder	Solder	SMA	500	-65 ░C	165 °C	50 Ohms	Stainless Steel	Female Socket Jack	Gold	1	Silver	26.5 GHz	Panel Mount Threaded
