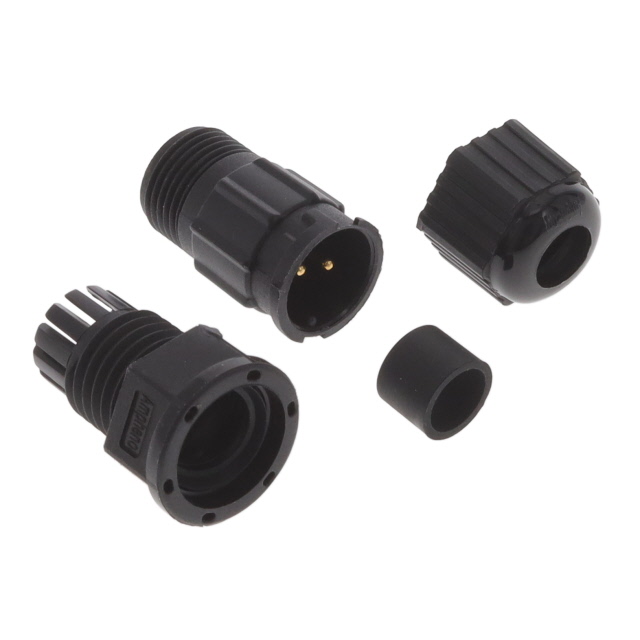

BB-02BMMA-LL7001

Active

Amphenol LTW

CONN RCPT MALE 2P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 2P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	BB-02BMMA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [diameter]	4.5 mm, 6.5 mm
Cable Opening [diameter]	0.256 in, 0.177 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded

Part	Orientation	Connector Type	Housing Color	Ingress Protection	Contact Shape	Fastening Type	Features	Type	Insert Material	Contact Type	Mounting Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Shell Size, MIL	Primary Material	Note	Contact Finish - Mating	Shell Size - Insert	Contact Material	Cable Opening [diameter]	Cable Opening [diameter]	Backshell Material, Plating	Shell Material	Current Rating (Amps)	Color	Material Flammability Rating	Voltage Rating
Amphenol LTW BB-02BMMA-QL8ANP	Keyed	Plug Housing	Black	IP68 - Dust Tight Waterproof	Circular	Push-Pull	Backshell	For Male Pins	Thermoplastic	Crimp	Free Hanging (In-Line)	2	-40 °C	105 ░C	Unshielded	B	Plastic	Contacts Not Included
Amphenol LTW BB-02BMMA-LL7001	Keyed	Male Pins Receptacle		IP67 - Dust Tight Waterproof		Bayonet Lock	Backshell				Free Hanging (In-Line)	2	-40 °C	105 ░C	Unshielded		Plastic		Gold	B	Copper Alloy	4.5 mm 6.5 mm	0.177 in 0.256 in	Nylon Polyamide (PA)	Glass Filled Nylon Polyamide (PA)	10 A	Black
Amphenol LTW BB-02BMMA-LL6001	A	Male Pins Receptacle		IP66		Bayonet Lock	Backshell		Polyamide (PA) Nylon Glass Filled		Free Hanging (In-Line)	2	-40 °C	105 ░C	Unshielded		Metal		Gold	B	Copper Alloy			Nylon Polyamide (PA)	Nickel	10 A	Black	UL94 V-0	250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Male Pins Solder Cup
