Specification	1-2016663-0

1st Connector	Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Size	3.5 mm
1st Contact Gender	Male
2nd Connector	Plug
2nd Connector Diameter	3.5 mm
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Diameter	6 mm
Cable Outer Diameter	6 mm
Cable Type	OD Coaxial Cable, Coaxial Cable, 6.00mm OD Coaxial Cable, mm OD Coaxial Cable
Cable Type Size	6
Color	Black
Features	Armored Cable, Shielded
Frequency - Max	26.5 GHz
Length	39.4 in
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Overall Impedance	50 Ohms
Style	3.5mm to 3.5mm

3.5 mm Series

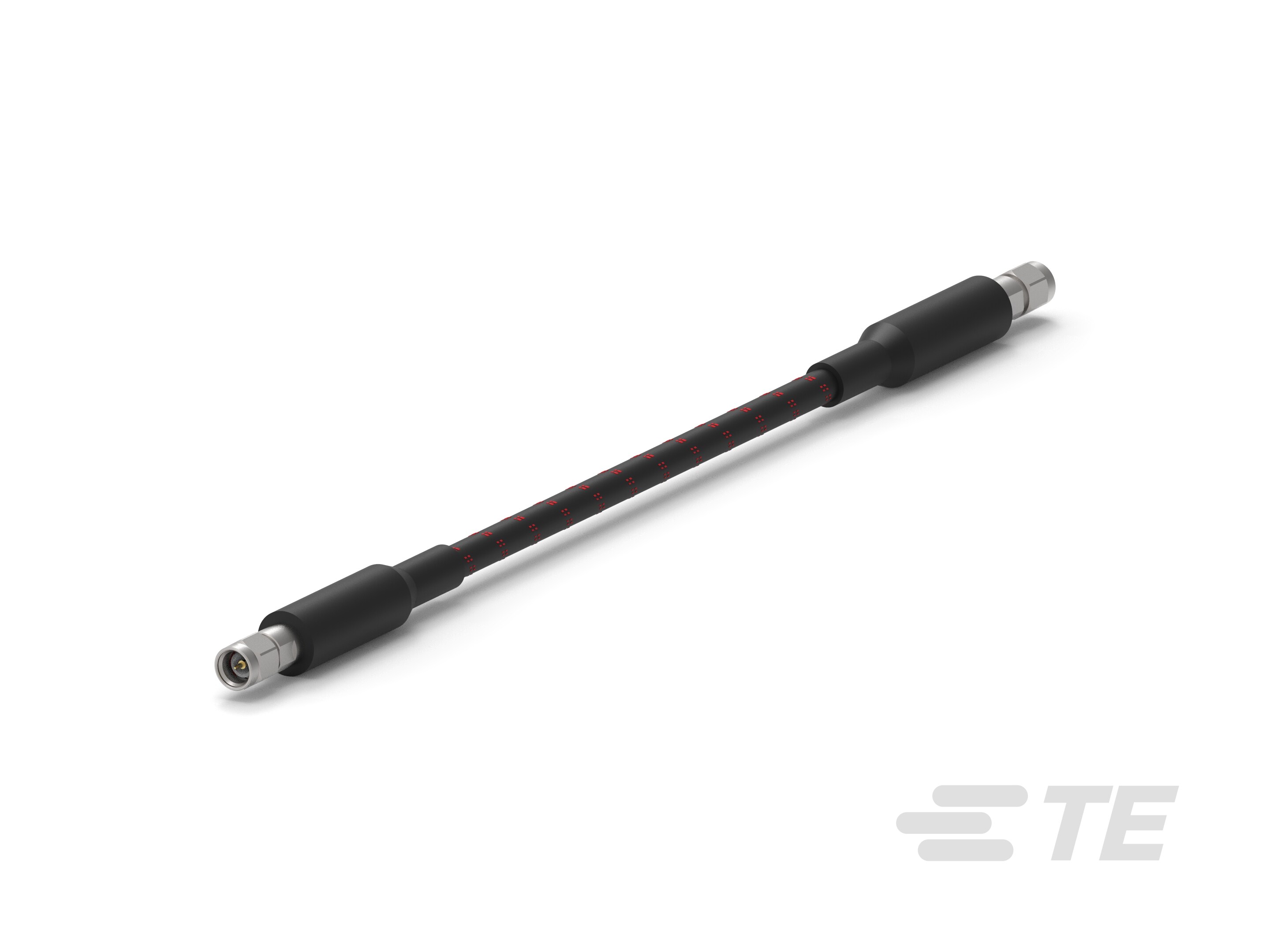

RF Cable Assemblies 3.5 M DOUBLE,26.5G 1.0M,WITH ARMORBRAID

Part	Operating Temperature (Min)	Operating Temperature (Max)	1st Connector Size	1st Connector	1st Contact Gender	2nd Connector Mounting Type	Frequency - Max	Length	Color	Overall Impedance	1st Connector Mounting Type	Style	Cable Type	Cable Diameter	Cable Outer Diameter	Cable Type Size	Features	2nd Contact Gender	2nd Connector Diameter	2nd Connector
TE Connectivity AMP Connectors 1-2016663-0	-40 °C	85 °C	3.5 mm	Plug	Male	Free Hanging (In-Line)	26.5 GHz	39.4 in	Black	50 Ohms	Free Hanging (In-Line)	3.5mm to 3.5mm	6.00mm OD Coaxial Cable Coaxial Cable mm OD Coaxial Cable OD Coaxial Cable	6 mm	6 mm	6	Armored Cable Shielded	Male	3.5 mm	Plug
