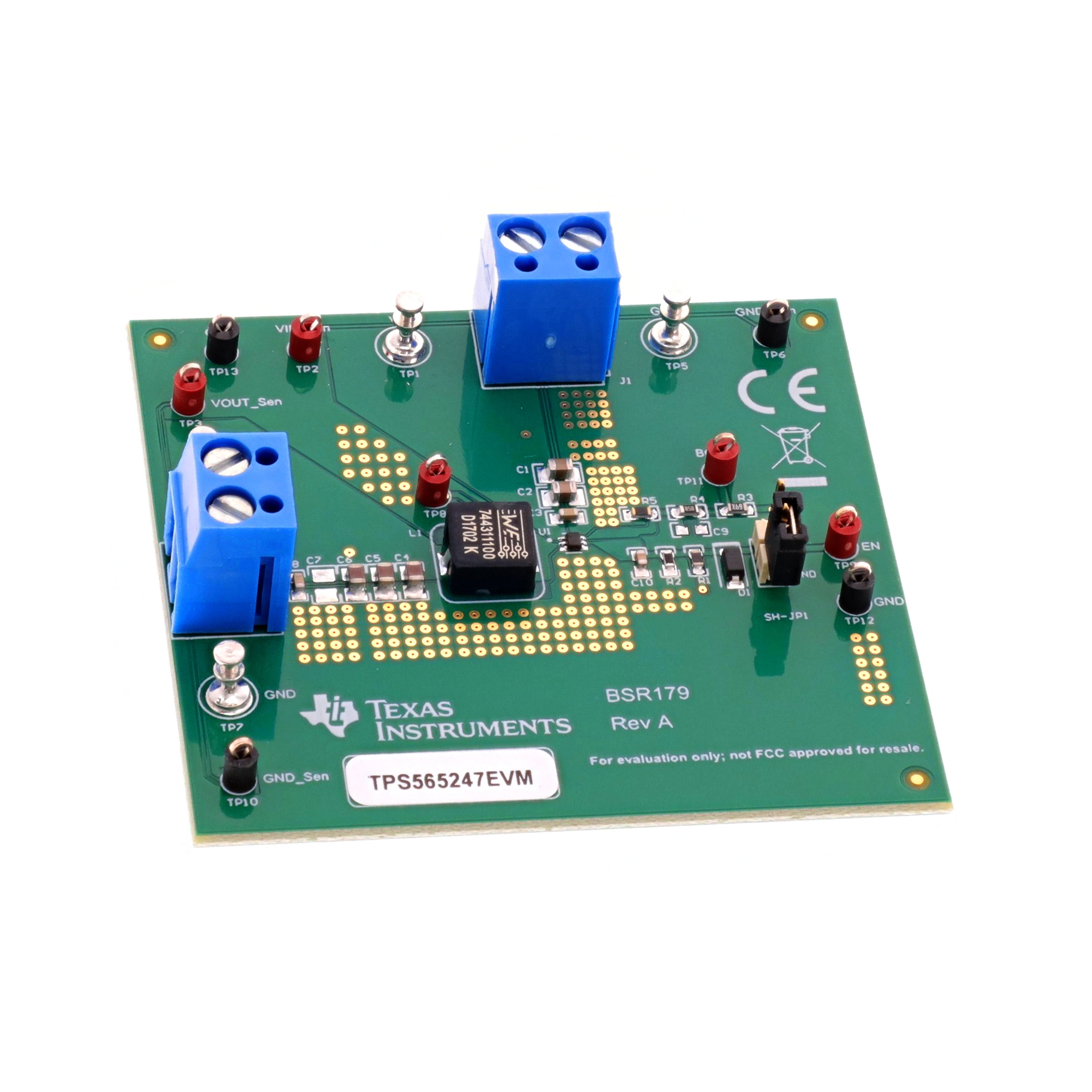

TPS565247EVM
ActiveTexas Instruments
PROTOTYPE
TPS565247EVM
ActiveTexas Instruments
PROTOTYPE
Description
General part information
TPS565247EVM
TPS565247 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | TPS565247EVM |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 5 A |
| Frequency - Switching | 600 kHz |
| Main Purpose | DC/DC, Step Down |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | TPS565247 |
| Voltage - Input (Maximum) | 16 V |
| Voltage - Input (Minimum) | 3 V |
| Voltage - Output | 1.05 V |
