FAD1-06025DBMW12-A

Active

Qualtek

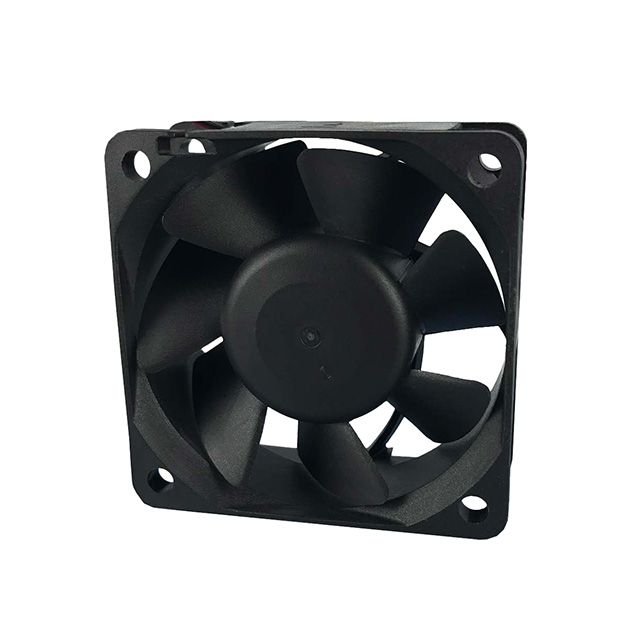

FAN AXIAL 60X25MM 24VDC WIRE

FAD1-06025DBMW12-A

Active

Qualtek

FAN AXIAL 60X25MM 24VDC WIRE

Description Specifications Series Pricing CAD Documents

Description

General part information

FAD1-06025 Series

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 17.9 CFM (0.501mł/min) 2 Wire Leads

Technical Specifications

Parameters and characteristics for this part

Specification	FAD1-06025DBMW12-A

Air Flow	17.9 CFM
Approval Agency	cURus, TUV, CE
Bearing Type	Ball
Current Rating	0.09 A
Fan Type	Tubeaxial
Lifetime	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	28.1 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	14 °F
Power (Watts)	2.16 W
RPM	3500 RPM
Size / Dimension Height	60 mm
Size / Dimension Length	60 mm
Size / Dimension Shape	Square
Static Pressure	0.152 in H2O
Termination	2 Wire Leads
Termination Leads Count	2 leads
Termination Type	Wire Leads
Voltage - Rated	24 VAC
Voltage Range (Max)	26.4 VDC
Voltage Range (Min)	21.6 VDC
Weight	0.137 lb
Width	25 mm

FAD1-06025 Series

Part	Material - Frame	Material - Blade	Current Rating	Width	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Bearing Type	Operating Temperature (Max)	Operating Temperature (Min)	Static Pressure	Termination Leads Count	Termination Type	Termination	Weight	RPM	Approval Agency	Voltage - Rated	Air Flow	Fan Type	Noise	Power (Watts)	Lifetime	Voltage Range (Max)	Voltage Range (Min)
Qualtek FAD1-06025BSMW12	Plastic	Plastic	0.17 A	25 mm	60 mm	Square	60 mm	Sleeve	140 °F	14 °F	0.125 in H2O	2 leads	Wire Leads	2 Wire Leads	0.117 lb	3500 RPM	CE cURus TUV	5 VAC	17.9 CFM	Tubeaxial	27.9 dB	850 mW
Qualtek FAD1-06025BBHW12-A				25 mm	60 mm	Square	60 mm	Ball	158 °F	14 °F	0.252 in H2O	2 leads	Wire Leads	2 Wire Leads	0.137 lb	4500 RPM	CE cURus TUV	5 VAC	23.4 CFM	Tubeaxial	33.1 dB	1.75 W
Qualtek FAD1-06025BBLW12-A	Plastic	Plastic	0.2 A	25 mm	60 mm	Square	60 mm	Ball	158 °F	14 °F	0.08 in H2O	2 leads	Wire Leads	2 Wire Leads	0.137 lb	2500 RPM	CE cURus TUV	5 VAC	12.7 CFM	Tubeaxial	18.9 dB	1 W	70000 Hrs	5.5 VDC	4.5 VDC
Qualtek FAD1-06025DBMW12-A	Plastic	Plastic	0.09 A	25 mm	60 mm	Square	60 mm	Ball	158 °F	14 °F	0.152 in H2O	2 leads	Wire Leads	2 Wire Leads	0.137 lb	3500 RPM	CE cURus TUV	24 VAC	17.9 CFM	Tubeaxial	28.1 dB	2.16 W	70000 Hrs	26.4 VDC	21.6 VDC
Qualtek FAD1-06025DBJW12-A	Plastic	Plastic	120 mA	25 mm	60 mm	Square	60 mm	Ball	158 °F	14 °F	0.298 in H2O	2 leads	Wire Leads	2 Wire Leads	0.137 lb	5000 RPM	CE cURus TUV	24 VAC	26.1 CFM	Tubeaxial	38.4 dB	2.88 W	70000 Hrs	26.4 VDC	21.6 VDC
Qualtek FAD1-06025CBMW12-A				25 mm	60 mm	Square	60 mm	Ball	158 °F	14 °F	0.152 in H2O	2 leads	Wire Leads	2 Wire Leads	0.137 lb	3500 RPM	CE cURus TUV	12 VAC	17.9 CFM	Tubeaxial	28.1 dB	1.56 W
Qualtek FAD1-06025DHLW12-A	Plastic	Plastic	60 mA	25 mm	60 mm	Square	60 mm	Hydrodynamic	158 °F	14 °F	0.08 in H2O	2 leads	Wire Leads	2 Wire Leads	0.137 lb	2500 RPM	CE cURus TUV	24 VAC	12.7 CFM	Tubeaxial	18.9 dB	720 mW	40000 Hrs	26.4 VDC	21.6 VDC
Qualtek FAD1-06025CBKW12-A	Plastic	Plastic	320 mA	25 mm	60 mm	Square	60 mm	Ball	158 °F	14 °F	0.445 in H2O	2 leads	Wire Leads	2 Wire Leads	0.137 lb	6000 RPM	CE cURus TUV	12 VAC	31.5 CFM	Tubeaxial	42.7 dB	3.84 W	70000 Hrs	13.2 VDC	10.8 VDC
Qualtek FAD1-06025BBMW12-A	Plastic	Plastic	0.35 A	25 mm	60 mm	Square	60 mm	Ball	158 °F	14 °F	0.152 in H2O	2 leads	Wire Leads	2 Wire Leads	0.137 lb	3500 RPM	CE cURus TUV	5 VAC	17.9 CFM	Tubeaxial	28.1 dB	1.75 W	70000 Hrs	5.5 VDC	4.5 VDC
Qualtek FAD1-06025DBHW12-A	Plastic	Plastic	120 mA	25 mm	60 mm	Square	60 mm	Ball	158 °F	14 °F	0.252 in H2O	2 leads	Wire Leads	2 Wire Leads	0.137 lb	4500 RPM	CE cURus TUV	24 VAC	23.4 CFM	Tubeaxial	33.1 dB	2.88 W	70000 Hrs	26.4 VDC	21.6 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

FAD1-06025DBMW12-A | Datasheet

AC/DC Axial Fans
