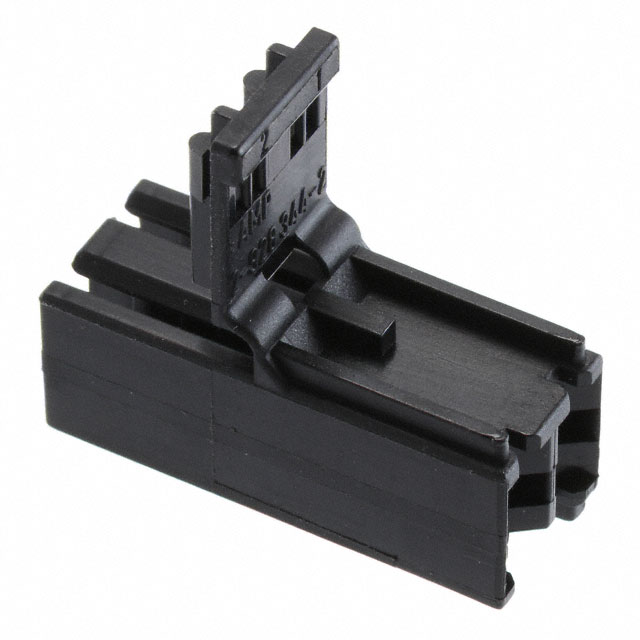

2-928344-2

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 2POS 5.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-928344-2

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 2POS 5.00MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	15000	$ 0.22

Description

General part information

928344 Series

2 Rectangular Connectors - Housings Receptacle Black 0.197" (5.00mm)

Documents

Technical documentation and resources

Datasheet

Specification	2-928344-2	928344 Series

Color	Black	Gray, Natural, Black, Green, Turquoise
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Friction Lock	Friction Lock
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2 - 7
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Rows	Pitch [x]	Pitch [x]	Fastening Type	Connector Type	Number of Positions	Note	Contact Type	Insulation Material	Color	Contact Termination
TE Connectivity AMP Connectors 3-928344-4	-40 °C	105 ░C	Free Hanging (In-Line)	1	5 mm	0.197 in	Friction Lock	Receptacle	4	Contacts Not Included	Female Socket	Polyamide (PA66), Nylon 6/6	Gray	Crimp
TE Connectivity AMP Connectors 928344-5	-40 °C	105 ░C	Free Hanging (In-Line)	1	5 mm	0.197 in	Friction Lock	Receptacle		Contacts Not Included	Female Socket	Polyamide (PA66), Nylon 6/6	Natural	Crimp
TE Connectivity AMP Connectors 5-928344-4	-40 °C	105 ░C	Free Hanging (In-Line)	1	5 mm	0.197 in	Friction Lock	Receptacle	4	Contacts Not Included	Female Socket	Polyamide (PA66), Nylon 6/6	Gray	Crimp
TE Connectivity AMP Connectors 4-928344-6	-40 °C	105 ░C	Free Hanging (In-Line)	1	5 mm	0.197 in	Friction Lock	Receptacle	6	Contacts Not Included	Female Socket	Polyamide (PA66), Nylon 6/6	Natural	Crimp
TE Connectivity AMP Connectors 4-928344-7	-40 °C	105 ░C	Free Hanging (In-Line)	1	5 mm	0.197 in	Friction Lock	Receptacle	7	Contacts Not Included	Female Socket	Polyamide (PA66), Nylon 6/6		Crimp
TE Connectivity AMP Connectors 2-928344-2	-40 °C	105 ░C	Free Hanging (In-Line)	1	5 mm	0.197 in	Friction Lock	Receptacle	2	Contacts Not Included	Female Socket	Polyamide (PA66), Nylon 6/6	Black	Crimp
TE Connectivity AMP Connectors 3-928344-6	-40 °C	105 ░C	Free Hanging (In-Line)	1	5 mm	0.197 in	Friction Lock	Receptacle	6	Contacts Not Included	Female Socket	Polyamide (PA66), Nylon 6/6	Green	Crimp
TE Connectivity AMP Connectors 4-928344-2	-40 °C	105 ░C	Free Hanging (In-Line)	1	5 mm	0.197 in	Friction Lock	Receptacle	2	Contacts Not Included	Female Socket	Polyamide (PA66), Nylon 6/6	Turquoise	Crimp
TE Connectivity AMP Connectors 928344-3	-40 °C	105 ░C	Free Hanging (In-Line)	1	5 mm	0.197 in	Friction Lock	Receptacle		Contacts Not Included	Female Socket	Polyamide (PA66), Nylon 6/6	Natural	Crimp
TE Connectivity AMP Connectors 2-928344-3	-40 °C	105 ░C	Free Hanging (In-Line)	1	5 mm	0.197 in	Friction Lock	Receptacle		Contacts Not Included	Female Socket	Polyamide (PA66), Nylon 6/6	Gray	Crimp

Part

Operating Temperature [Min]

Operating Temperature [Max]

Mounting Type

Number of Rows

Pitch [x]

Fastening Type

Connector Type

Number of Positions

Note

Contact Type

Insulation Material

Color

Contact Termination

TE Connectivity AMP Connectors

3-928344-4

-40 °C

105 ░C

Free Hanging (In-Line)

5 mm

0.197 in

Friction Lock

Receptacle

Contacts Not Included

Female Socket

Polyamide (PA66), Nylon 6/6

Gray

Crimp

TE Connectivity AMP Connectors

928344-5

-40 °C

105 ░C

Free Hanging (In-Line)

5 mm

0.197 in

Friction Lock

Receptacle

Contacts Not Included

Female Socket

Polyamide (PA66), Nylon 6/6

Natural

Crimp

TE Connectivity AMP Connectors

5-928344-4

-40 °C

105 ░C

Free Hanging (In-Line)

5 mm

0.197 in

Friction Lock

Receptacle

Contacts Not Included

Female Socket

Polyamide (PA66), Nylon 6/6

Gray

Crimp

TE Connectivity AMP Connectors

4-928344-6

-40 °C

105 ░C

Free Hanging (In-Line)

5 mm

0.197 in

Friction Lock

Receptacle

Contacts Not Included

Female Socket

Polyamide (PA66), Nylon 6/6

Natural

Crimp

TE Connectivity AMP Connectors

4-928344-7

-40 °C

105 ░C

Free Hanging (In-Line)

5 mm

0.197 in

Friction Lock

Receptacle

Contacts Not Included

Female Socket

Polyamide (PA66), Nylon 6/6

Crimp

TE Connectivity AMP Connectors

2-928344-2

-40 °C

105 ░C

Free Hanging (In-Line)

5 mm

0.197 in

Friction Lock

Receptacle

Contacts Not Included

Female Socket

Polyamide (PA66), Nylon 6/6

Black

Crimp

TE Connectivity AMP Connectors

3-928344-6

-40 °C

105 ░C

Free Hanging (In-Line)

5 mm

0.197 in

Friction Lock

Receptacle

Contacts Not Included

Female Socket

Polyamide (PA66), Nylon 6/6

Green

Crimp

TE Connectivity AMP Connectors

4-928344-2

-40 °C

105 ░C

Free Hanging (In-Line)

5 mm

0.197 in

Friction Lock

Receptacle

Contacts Not Included

Female Socket

Polyamide (PA66), Nylon 6/6

Turquoise

Crimp

TE Connectivity AMP Connectors

928344-3

-40 °C

105 ░C

Free Hanging (In-Line)

5 mm

0.197 in

Friction Lock

Receptacle

Contacts Not Included

Female Socket

Polyamide (PA66), Nylon 6/6

Natural

Crimp

TE Connectivity AMP Connectors

2-928344-3

-40 °C

105 ░C

Free Hanging (In-Line)

5 mm

0.197 in

Friction Lock

Receptacle

Contacts Not Included

Female Socket

Polyamide (PA66), Nylon 6/6

Gray

Crimp
