SM91514AL-E

Active

Bourns Inc.

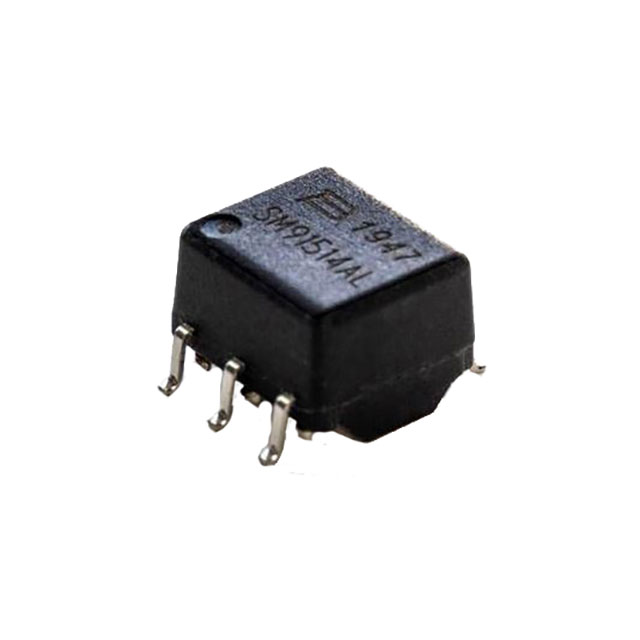

BMS TRANSFORMER/CMC, 6PIN,SGL, 4.3KVDC /TAPE & REEL - 13" REEL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Bourns Inc.

BMS TRANSFORMER/CMC, 6PIN,SGL, 4.3KVDC /TAPE & REEL - 13" REEL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	SM91514AL-E

Grade	Automotive
Height - Seated (Max)	5.72 mm
Height - Seated (Max) [Max] [z]	0.225 in
Inductance	300 µH
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Qualification	AEC-Q200
Size / Dimension [x]	0.3 in
Size / Dimension [x]	7.62 mm
Size / Dimension [y]	6.73 mm
Size / Dimension [y]	0.265 "
Turns Ratio - Primary:Secondary	1:1

Part	Inductance	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Grade	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Turns Ratio - Primary:Secondary	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Qualification
Bourns Inc. SM91514AL-E	300 µH	5.72 mm	0.225 in	Automotive	125 °C	-40 °C	Surface Mount	1:1	6.73 mm	0.3 in	0.265 "	7.62 mm	AEC-Q200

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

300µH Pulse Transformer 1:1 Surface Mount
