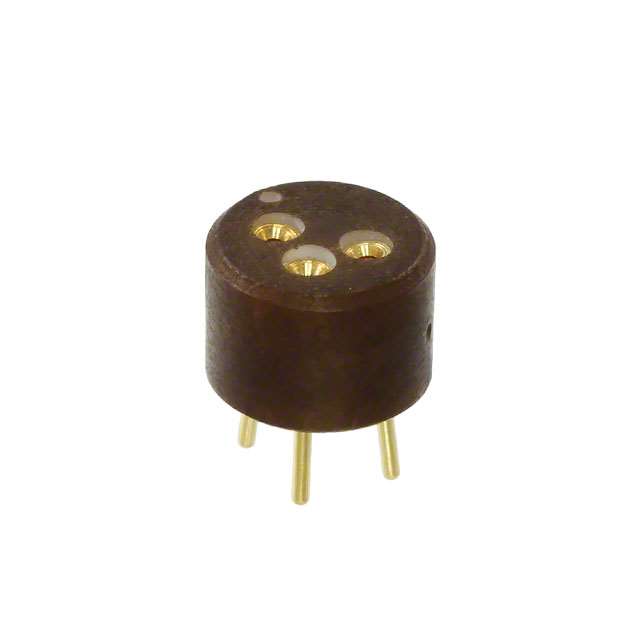

1-1437504-6

Obsolete

TE Connectivity Raychem Cable Protection

CONN TRANSIST TO-5 3POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-1437504-6

Obsolete

TE Connectivity Raychem Cable Protection

CONN TRANSIST TO-5 3POS GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-1437504-6

Contact Finish - Mating	Gold
Number of Positions or Pins (Grid)	3
Termination	Solder
Type	Transistor, TO-5

1437504 Series

Part	Contact Material - Post	Contact Material - Mating	Housing Material	Mounting Type	Number of Positions or Pins (Grid)	Contact Finish - Post	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Material Flammability Rating	Contact Resistance
TE Connectivity Raychem Cable Protection 8-1437504-3	Beryllium Copper	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Chassis Mount	3	Tin	Closed Frame	5.08 µm	200 µin	Transistor TO-3	-55 °C	125 °C	Solder	200 µin	5.08 µm
TE Connectivity Raychem Cable Protection 8-1437504-0	Beryllium Copper	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Chassis Mount	3	Gold	Closed Frame	0.76 Ám	30 Áin	Transistor TO-3	-55 °C	125 °C	Solder	30 µin	0.76 µm	Gold
TE Connectivity Raychem Cable Protection 1-1437504-0	Beryllium Copper	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Through Hole	4	Gold	Closed Frame			Transistor TO-5	-55 °C	125 °C	Solder			Gold
TE Connectivity Raychem Cable Protection 1-1437504-6					3					Transistor TO-5			Solder			Gold
TE Connectivity Raychem Cable Protection 8-1437504-6	Beryllium Copper	Beryllium Copper	Diallyl Phthalate	Through Hole	3	Gold	Closed Frame	1.27 µm	50 µin	Transistor TO-3	-55 °C	125 °C	Solder			Gold	UL94 V-0
TE Connectivity Raychem Cable Protection 3-1437504-6	Beryllium Copper	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Chassis Mount	3	Gold	Closed Frame	1.27 µm	50 µin	Transistor TO-3	-55 °C	125 °C	Solder	50 µin	1.27 µm	Gold
TE Connectivity Raychem Cable Protection 8-1437504-9	Beryllium Copper	Beryllium Copper	Phenolic	Chassis Mount	3	Copper	Closed Frame	5.08 µm	200 µin	Transistor TO-3	-55 °C	125 °C	Solder	100 µin	2.54 µm	Tin-Lead	UL94 V-0	25 mOhm
TE Connectivity Raychem Cable Protection 8-1437504-1	Beryllium Copper	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Chassis Mount	3	Tin	Closed Frame			Transistor TO-3	-55 °C	125 °C	Solder
TE Connectivity Raychem Cable Protection 1437504-3	Beryllium Copper	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Through Hole	4	Gold	Closed Frame			Transistor TO-5	-55 °C	125 °C	Solder			Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1437504 Series

3 (Round) Pos Transistor, TO-5 Socket Gold
