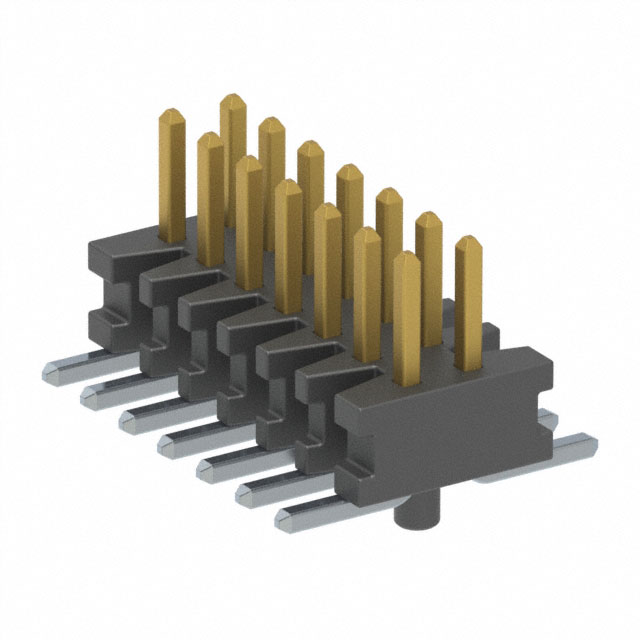

FTMH-107-02-F-DV-A-P-TR

Active

Samtec Inc.

CONN HEADER SMD 14POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FTMH-107-02-F-DV-A-P-TR

Active

Samtec Inc.

CONN HEADER SMD 14POS 1MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTMH-107-02-F-DV-A-P-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating [x]	1.9 mm
Contact Length - Mating [x]	0.075 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.8 A per Contact
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Unshrouded
Termination	Solder

FTMH-107 Series

Part	Contact Length - Mating [x]	Contact Length - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Number of Positions	Insulation Height	Insulation Height	Material Flammability Rating	Termination	Features	Insulation Color	Insulation Material	Contact Material	Contact Finish - Mating	Shrouding	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Type	Contact Finish - Post	Connector Type	Fastening Type	Number of Positions Loaded	Number of Rows	Contact Length - Mating	Contact Length - Mating
Samtec Inc. FTMH-107-02-L-DV-ES-A	1.9 mm	0.075 in	-55 °C	125 °C	0.039 "	1 mm	Square	14	1.5 mm	0.059 "	UL94 V-0	Solder	Board Guide End Shrouds	Black	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold	Unshrouded	2.8 A per Contact	10 çin	0.25 çm	0.039 in	1 mm	Surface Mount	Male Pin	Tin	Header	Push-Pull	All	2
Samtec Inc. FTMH-107-02-L-DH-K-TR	1.9 mm	0.075 in	-55 °C	125 °C	0.039 "	1 mm	Square	14	3.18 mm	0.125 in	UL94 V-0	Solder	Pick and Place	Black	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold	Unshrouded	2.8 A per Contact	10 çin	0.25 çm	0.039 in	1 mm	Surface Mount Right Angle	Male Pin	Tin	Header	Push-Pull	All	2
Samtec Inc. FTMH-107-03-F-DV-ES			-55 °C	125 °C	0.039 "	1 mm	Square	14	1.5 mm	0.059 "	UL94 V-0	Solder	End Shrouds	Black	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold	Unshrouded	2.8 A per Contact	3 µin	0.076 µm	0.039 in	1 mm	Surface Mount	Male Pin	Tin	Header	Push-Pull	All	2	0.065 in	1.65 mm
Samtec Inc. FTMH-107-03-L-DV-ES-A-P			-55 °C	125 °C	0.039 "	1 mm	Square	14	1.5 mm	0.059 "	UL94 V-0	Solder		Black	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold	Unshrouded	2.8 A per Contact	10 çin	0.25 çm	0.039 in	1 mm	Surface Mount	Male Pin	Tin	Header	Push-Pull	All	2	0.065 in	1.65 mm
Samtec Inc. FTMH-107-03-L-DV-ES-A-P-TR			-55 °C	125 °C	0.039 "	1 mm	Square	14	1.5 mm	0.059 "	UL94 V-0	Solder		Black	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold	Unshrouded	2.8 A per Contact	10 çin	0.25 çm	0.039 in	1 mm	Surface Mount	Male Pin	Tin	Header	Push-Pull	All	2	0.065 in	1.65 mm
Samtec Inc. FTMH-107-03-L-DV-P			-55 °C	125 °C	0.039 "	1 mm	Square	14	1.5 mm	0.059 "	UL94 V-0	Solder	Pick and Place	Black	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold	Unshrouded	2.8 A per Contact	10 çin	0.25 çm	0.039 in	1 mm	Surface Mount	Male Pin	Tin	Header	Push-Pull	All	2	0.065 in	1.65 mm
Samtec Inc. FTMH-107-02-F-DV-A	1.9 mm	0.075 in	-55 °C	125 °C	0.039 "	1 mm	Square	14	1.5 mm	0.059 "	UL94 V-0	Solder	Board Guide	Black	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold	Unshrouded	2.8 A per Contact	3 µin	0.076 µm	0.039 in	1 mm	Surface Mount	Male Pin	Tin	Header	Push-Pull	All	2
Samtec Inc. FTMH-107-03-L-DH			-55 °C	125 °C	0.039 "	1 mm	Square	14	3.18 mm	0.125 in	UL94 V-0	Solder		Black	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold	Unshrouded	2.8 A per Contact	10 çin	0.25 çm	0.039 in	1 mm	Surface Mount Right Angle	Male Pin	Tin	Header	Push-Pull	All	2	0.065 in	1.65 mm
Samtec Inc. FTMH-107-03-F-DV-ES-A			-55 °C	125 °C	0.039 "	1 mm	Square	14	1.5 mm	0.059 "	UL94 V-0	Solder	Board Guide End Shrouds	Black	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold	Unshrouded	2.8 A per Contact	3 µin	0.076 µm	0.039 in	1 mm	Surface Mount	Male Pin	Tin	Header	Push-Pull	All	2	0.065 in	1.65 mm
Samtec Inc. FTMH-107-02-F-DV-A-P-TR	1.9 mm	0.075 in	-55 °C	125 °C	0.039 "	1 mm	Square	14	1.5 mm	0.059 "	UL94 V-0	Solder	Board Guide Pick and Place	Black	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold	Unshrouded	2.8 A per Contact	3 µin	0.076 µm	0.039 in	1 mm	Surface Mount	Male Pin	Tin	Header	Push-Pull	All	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	650	$ 2.64

Description

General part information

FTMH-107 Series

Connector Header Surface Mount 14 position 0.039" (1.00mm)
