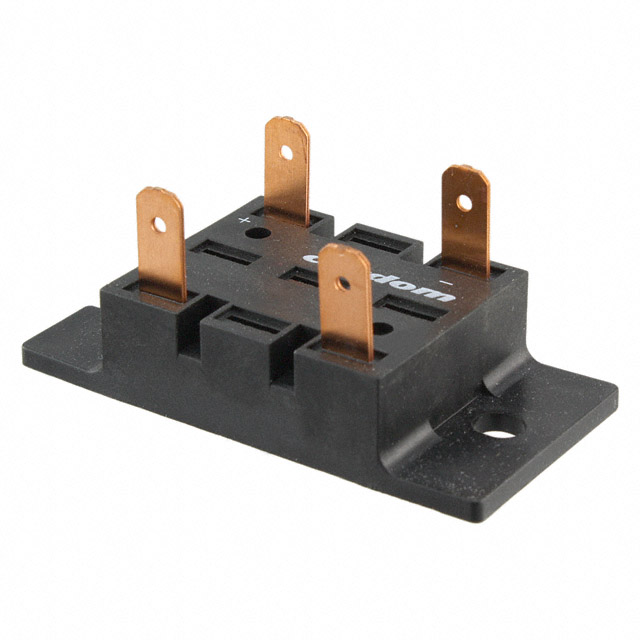

B483F-2T

Active

Sensata-Crydom

BRIDGE RECT 1PHASE 1.2KV 35A

Search across all available documentation for this part.

Active

Sensata-Crydom

BRIDGE RECT 1PHASE 1.2KV 35A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	B483F-2T	B483F Series

Current - Average Rectified (Io)	35 A	35 A
Diode Type	Single Phase	Single Phase
Mounting Type	QC Terminal	QC Terminal
Operating Temperature [Max]	125 ¯C	125 ¯C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	B48 Module	B48 Module
Technology	Standard	Standard
Voltage - Forward (Vf) (Max) @ If	1.35 V	1.35 V
Voltage - Peak Reverse (Max) [Max]	1.2 kV	1.2 kV

BRIDGE RECT 1PHASE 1.2KV 35A

Part	Current - Average Rectified (Io)	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]	Diode Type	Package / Case
Sensata-Crydom B483F-2T	35 A	Standard	-40 °C	125 ¯C	QC Terminal	1.35 V	1.2 kV	Single Phase	B48 Module
Sensata-Crydom B483F-2	35 A	Standard	-40 °C	125 ¯C	QC Terminal	1.35 V	1.2 kV	Single Phase	B48 Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1.2 kV QC Terminal
