AXE580127

Active

Panasonic Electric Works

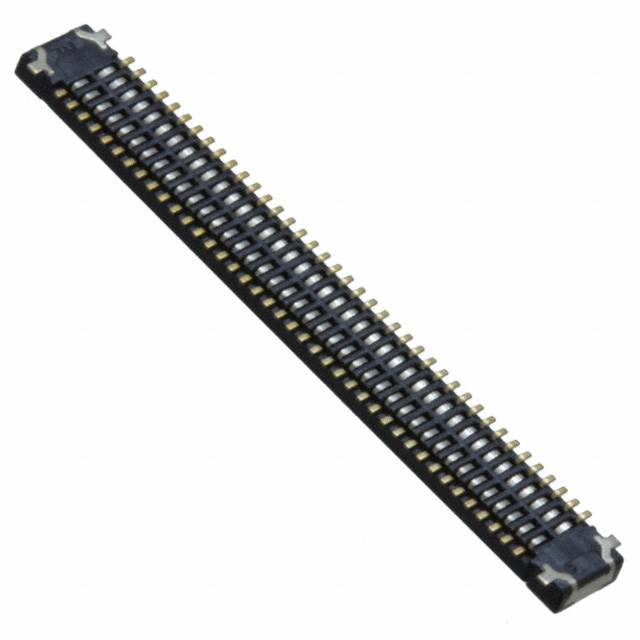

CONN SOCKET 80POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 80POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXE580127

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Mated Stacking Heights	1 mm, 0.8 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Connector Type	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish	Features	Mounting Type	Number of Positions
Panasonic Electric Works AXE580127	Socket Center Strip Contacts	0.03 in	0.75 mm	0.8 mm 1 mm	0.016 in	0.4 mm	2	Gold	Solder Retention	Surface Mount	80

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 1.22

General part information

80 Position Connector Socket, Center Strip Contacts Surface Mount Gold
