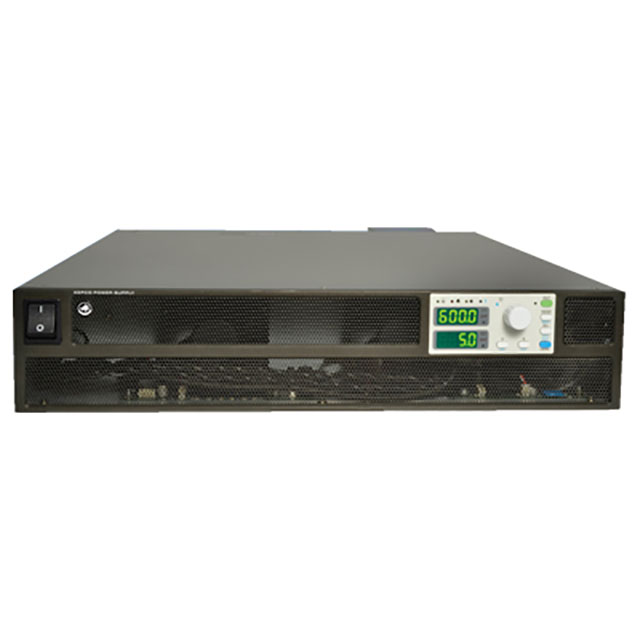

KLN 100-30G

Active

Kepco and Kepco Power

POWER SUPPLY 3000W + GPIB INTER

Search across all available documentation for this part.

Active

Kepco and Kepco Power

POWER SUPPLY 3000W + GPIB INTER

Technical Specifications

Parameters and characteristics commom to parts in this series

POWER SUPPLY 750W + LXI INTERFA

Part	Type	Ripple	Voltage Regulation - Line	Voltage - Output [Max]	Display Type	Accuracy - Voltmeter; Ammeter	Current Regulation - Load	Power (Watts)	Number of Characters	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Output [Max]	Voltage Regulation - Load	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current Regulation - Line [custom]	Voltage Regulation - Load	Current Regulation - Line	Current Regulation - Line [custom]	Current Regulation - Line [custom]
Kepco and Kepco Power KLN 100-7.5E	Rack Mount (AC to DC)	10 mV	0.05 %, 12 mV	100 VDC	Digital	0.02% + 3 Counts	0.1 %, 6.55 mA	750 W	4	100 VAC	240 VAC	7.5 A	0.05 %, 12 mV	8.465 in	44 mm	18.504 "	470 mm	215 mm	1.732 in	0.1 %, 2.75 mA
Kepco and Kepco Power KLN 100-30	Rack Mount (AC to DC)	23 mV	0.05 %, 12 mV	100 VDC	Digital	0.02% + 3 Counts	0.1 %, 11.6 mA	3000 W	4	190 VAC	240 VAC	30 A	0.05 %	16.929 in	88 mm	18.504 "	470 mm	430 mm	3.465 "		20 mV	0.1 %, 20 mA
Kepco and Kepco Power KLN 100-30G	Rack Mount (AC to DC)	23 mV	0.05 %, 12 mV	100 VDC	Digital	0.02% + 3 Counts	0.1 %, 11.6 mA	3000 W	4	190 VAC	240 VAC	30 A	0.05 %	16.929 in	88 mm	18.504 "	470 mm	430 mm	3.465 "		20 mV	0.1 %, 20 mA
Kepco and Kepco Power KLN 100-15E	Rack Mount (AC to DC)	15 mV	0.05 %, 12 mV	100 VDC	Digital	0.02% + 3 Counts	0.1 %, 8 mA	1500 W	4	100 VAC	240 VAC	15 A	0.05 %, 12 mV	16.929 in	44 mm	18.504 "	470 mm	430 mm	1.732 in				3.5 mA	0.1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 5169.25

General part information

0 ~ 100VDC Output Rack Mount (AC to DC) Power Supply Digital 0 ~ 30A Output 3000W Features Programmable, RS-485
