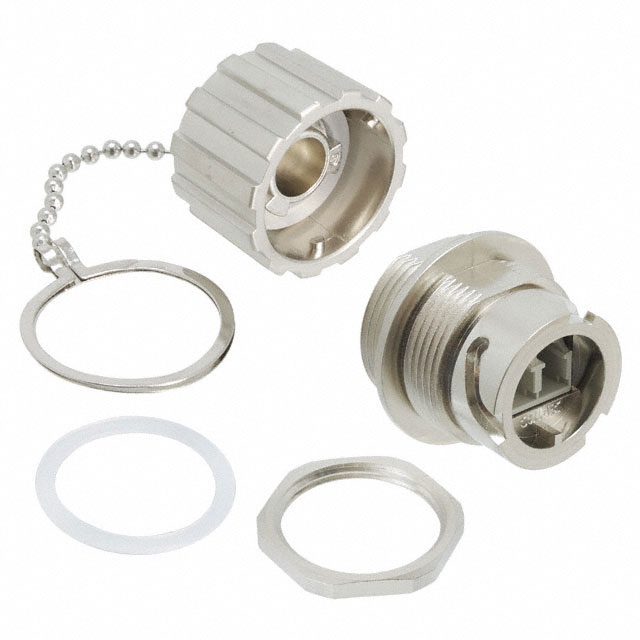

17-300390

Active

Amphenol CONEC

CONN COUPLER RCPT LC-LC DUPLEX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

17-300390

Active

Amphenol CONEC

CONN COUPLER RCPT LC-LC DUPLEX

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	17-300390

Color	Silver
Convert From (Adapter End)	LC Receptacle
Convert To (Adapter End)	LC Receptacle
Features	Protective Cap
Housing Material	Zinc Die Cast
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mode	Multimode
Mounting Type	Bulkhead, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Simplex/Duplex	Duplex
Type	Coupler

17-3003 Series

Part	Color - Connectors	Length - Overall [x]	Length - Overall [x]	Type	Cable Type	Color - Cable	Insertion Loss	2nd Connector	Ratings	1st Connector	Features	Fiber Type	Length - Overall	Length - Overall	Ingress Protection	Simplex/Duplex	Color	Housing Material	Convert From (Adapter End)	Mode	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Convert To (Adapter End)	Mounting Type
Amphenol CONEC 17-300310-02	Black	6.6 ft	2 m	Duplex Multimode	Buffered Fiber	Black	0.51 dB	LC Duplex	OFNR	LC Duplex	IP67	50/125
Amphenol CONEC 17-300310-01	Black	3.3 ft	1 m	Duplex Multimode	Buffered Fiber	Black	0.5 dB	LC Duplex	OFNR	LC Duplex	IP67	50/125
Amphenol CONEC 17-300310-05	Black			Duplex Multimode	Buffered Fiber	Black	0.52 dB	LC Duplex	OFNR	LC Duplex	IP67	50/125	5 m	16.4 ft
Amphenol CONEC 17-300390				Coupler							Protective Cap				IP67 - Dust Tight Waterproof	Duplex	Silver	Zinc Die Cast	LC Receptacle	Multimode	85 °C	-40 °C	UL94 V-0	LC Receptacle	Bulkhead Panel Mount
Amphenol CONEC 17-300320-10	Black	32.8 ft	10 m	Duplex Singlemode	Buffered Fiber	Black	0.21 dB	LC Duplex	OFNR	LC Duplex	IP67
Amphenol CONEC 17-300330-01	Black	3.3 ft	1 m	Duplex Singlemode	Buffered Fiber	Black	0.2 dB	LC/PC Duplex	OFNR	LC/PC Duplex
Amphenol CONEC 17-300310-30	Black	98.4 ft		Duplex Multimode	Buffered Fiber	Black	0.61 dB	LC Duplex	OFNR	LC Duplex	IP67	50/125	30 m
Amphenol CONEC 17-300330-05	Black			Duplex Singlemode	Buffered Fiber	Black	0.2 dB	LC Duplex	OFNR	LC Duplex			5 m	16.4 ft
Amphenol CONEC 17-300320-15	Black	49.2 '	15 m	Duplex Singlemode	Buffered Fiber	Black	0.21 dB	LC Duplex	OFNR	LC Duplex	IP67
Amphenol CONEC 17-300310-07	Black	23 ft	7 m	Duplex Multimode	Buffered Fiber	Black	0.52 dB	LC Duplex	OFNR	LC Duplex	IP67	50/125

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 45.72
		10	$ 41.96
		25	$ 40.34
		50	$ 39.00
		100	$ 36.85
		250	$ 35.77

Description

General part information

17-3003 Series

Coupler Fiber Optic Connector LC Receptacle To LC Receptacle Panel Mount, Bulkhead

Documents

Technical documentation and resources
