0041.9146.3317
ActiveSCHURTER Inc.

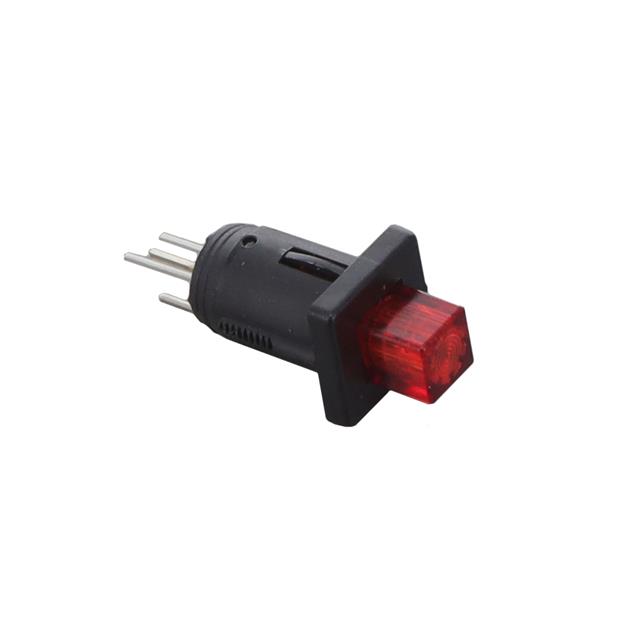

SWITCH PUSH SPST-NO 200MA 60V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0041.9146.3317
ActiveSCHURTER Inc.
SWITCH PUSH SPST-NO 200MA 60V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0041.9146.3317 | 0041.9146 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Button, Square | Button, Square |
| Circuit | SPST-NO | SPST-NO |
| Color - Actuator/Cap | Red | Green, Red |
| Current Rating (Amps) | 200 mA | 200 mA |
| Electrical Life | 10000 Cycles | 10000 Cycles |
| Illumination Type, Color | Red, LED | LED, Green, Red |
| Illumination Voltage (Nominal) | 2 VDC | 2 VDC |
| Ingress Protection | IP40 | IP40 |
| Mechanical Life | 10000 Steps | 10000 Steps |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 8 mm | 8 mm |
| Switch Function | Off-Mom | Off-Mom |
| Termination Style | PC Pin | PC Pin |
| Type | Illuminated, Standard | Illuminated, Standard |
| Voltage Rating - AC | 60 V | 60 V |
| Voltage Rating - DC | 50 VDC | 50 VDC |
0041.9146 Series
SWITCH PUSH SPST-NO 200MA 60V
| Part | Voltage Rating - AC | Circuit | Mounting Type | Voltage Rating - DC | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Actuator Marking | Termination Style | Current Rating (Amps) | Switch Function | Mechanical Life | Electrical Life | Ingress Protection | Panel Cutout Dimensions [diameter] | Type | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 0041.9146.5327 | 60 V | SPST-NO | Panel Mount, Front | 50 VDC | Green | Green, LED | 2 VDC | No Marking | PC Pin | 200 mA | Off-Mom | 10000 Steps | 10000 Cycles | IP40 | 8 mm | Illuminated, Standard | Button, Square | -25 °C | 60 °C |
SCHURTER Inc. 0041.9146.1337 | 60 V | SPST-NO | Panel Mount, Front | 50 VDC | No Marking | PC Pin | 200 mA | Off-Mom | 10000 Steps | 10000 Cycles | IP40 | 8 mm | Illuminated, Standard | Button, Square | -25 °C | 60 °C | |||
SCHURTER Inc. 0041.9146.3317 | 60 V | SPST-NO | Panel Mount, Front | 50 VDC | Red | LED, Red | 2 VDC | No Marking | PC Pin | 200 mA | Off-Mom | 10000 Steps | 10000 Cycles | IP40 | 8 mm | Illuminated, Standard | Button, Square | -25 °C | 60 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.98 | |
| 50 | $ 8.17 | |||
| 100 | $ 6.43 | |||
| 500 | $ 5.89 | |||
Description
General part information
0041.9146 Series
Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
