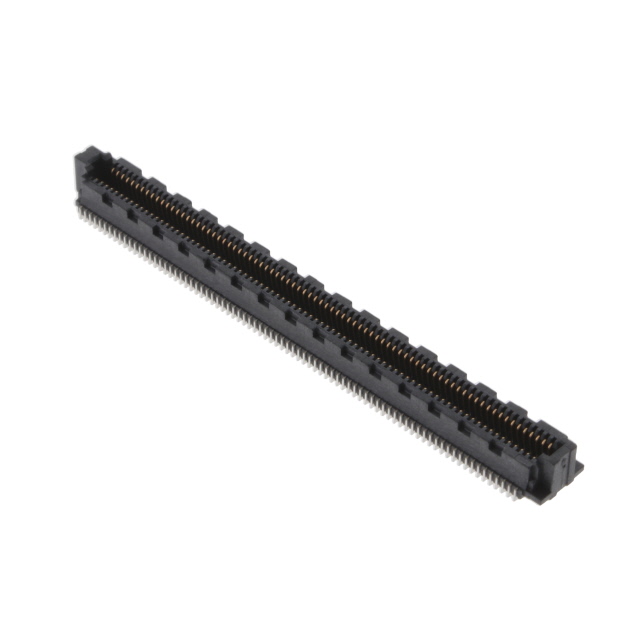

SS5-80-3.00-L-D-K-TR

Active

Samtec Inc.

CONN FINE PITCH CONNECTOR SKT 160 POS 0.5MM SOLDER ST SMD T/R

Search across all available documentation for this part.

Active

Samtec Inc.

CONN FINE PITCH CONNECTOR SKT 160 POS 0.5MM SOLDER ST SMD T/R

Technical Specifications

Parameters and characteristics for this part

Specification	SS5-80-3.00-L-D-K-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place
Height Above Board	2.85 mm
Height Above Board	0.112 in
Mated Stacking Heights	4.5 mm, 4 mm, 5.5 mm
Mounting Type	Surface Mount
Number of Positions	160
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Mounting Type	Mated Stacking Heights	Pitch [x]	Pitch [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Number of Rows	Features	Height Above Board	Height Above Board
Samtec Inc. SS5-80-3.00-L-D-K-TR	Surface Mount	4 mm 4.5 mm 5.5 mm	0.5 mm	0.02 in	Gold	10 Áin	0.25 Ám	Outer Shroud Contacts Socket	160	2	Pick and Place	2.85 mm	0.112 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

160 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
