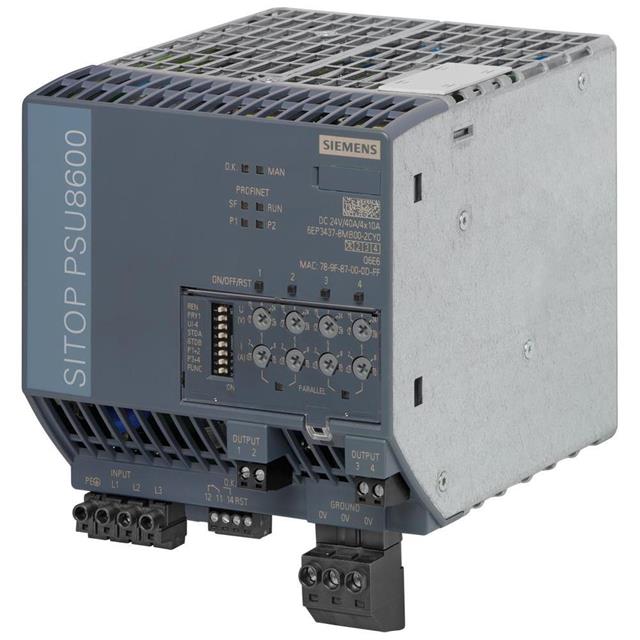

6EP34378MB002CP0

Active

Siemens

AC/DC DIN RAIL SUPPLY QUAD 24V

Search across all available documentation for this part.

Active

Siemens

AC/DC DIN RAIL SUPPLY QUAD 24V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output 2	Voltage - Output 3	Current - Output (Max)	Number of Outputs	Voltage - Output 1	Input Type	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Applications	Voltage - Output 4	Approval Agency	Efficiency	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Features
Siemens 6EP34378MB002CP0	24 V	24 V	10 A	4	24 V	AC	500 VAC	400 VAC	ITE (Commercial)	24 V
Siemens 6EP34378SB002AY0				1	24 V	AC	575 VAC	320 VAC	Industrial ITE (Commercial)		cCSAus CE CSA cULus UL	93 %	60950-1 UL 508	-25 °C	60 °C	4.92 in	125 mm	5.91 "	150 mm	125 mm	4.92 in	40 A	Adjustable Output IP20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1453.79

General part information

AC/DC DIN RAIL SUPPLY QUAD 24V

Technical documentation and resources
