M2146 Series

Part	Length - Overall	Plating	Material	Gender	Diameter - Outside	Diameter - Outside Shape	Diameter - Outside (Rounded)	Screw Thread Size	Threaded/Unthreaded	Type	Between Board Height
RAF Electronic Hardware M2146-4007-SS-20	0.808 in	Passivated	Stainless Steel	Female Male	0.236 in	Hex	0.236 in	M4x0.7	Threaded	Hex Standoff	0.433 in

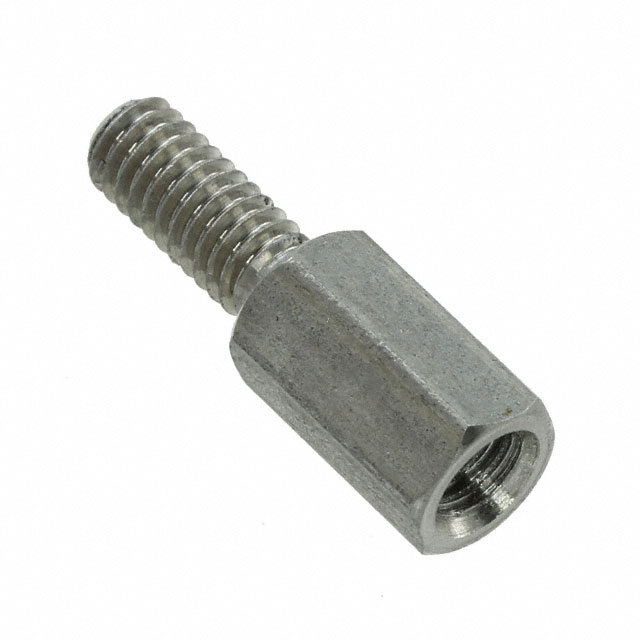

RAF Electronic Hardware M2146-2545-SS	0.589 in		Stainless Steel	Female Male	0.236 in	Hex	0.236 in	M2.5x0.45	Threaded	Hex Standoff	0.433 in
RAF Electronic Hardware M2146-3005-B	0.62 in		Brass	Female Male	0.236 in			M3x0.5	Threaded	Hex Standoff	0.433 in
RAF Electronic Hardware M2146-3005-SS	0.62 in		Stainless Steel	Female Male	0.236 in	Hex	0.236 in	M3x0.5	Threaded	Hex Standoff	0.433 in
RAF Electronic Hardware M2146-4007-SS	0.808 in		Stainless Steel	Female Male	0.236 in	Hex	0.236 in	M4x0.7	Threaded	Hex Standoff	0.433 in
RAF Electronic Hardware M2146-4007-B-5	0.808 in	Nickel	Brass	Female Male	0.236 in			M4x0.7	Threaded	Hex Standoff	0.433 in
RAF Electronic Hardware M2146-3005-AL	0.62 in		Aluminum	Female Male	0.236 in	Hex	0.236 in	M3x0.5	Threaded	Hex Standoff	0.433 in
