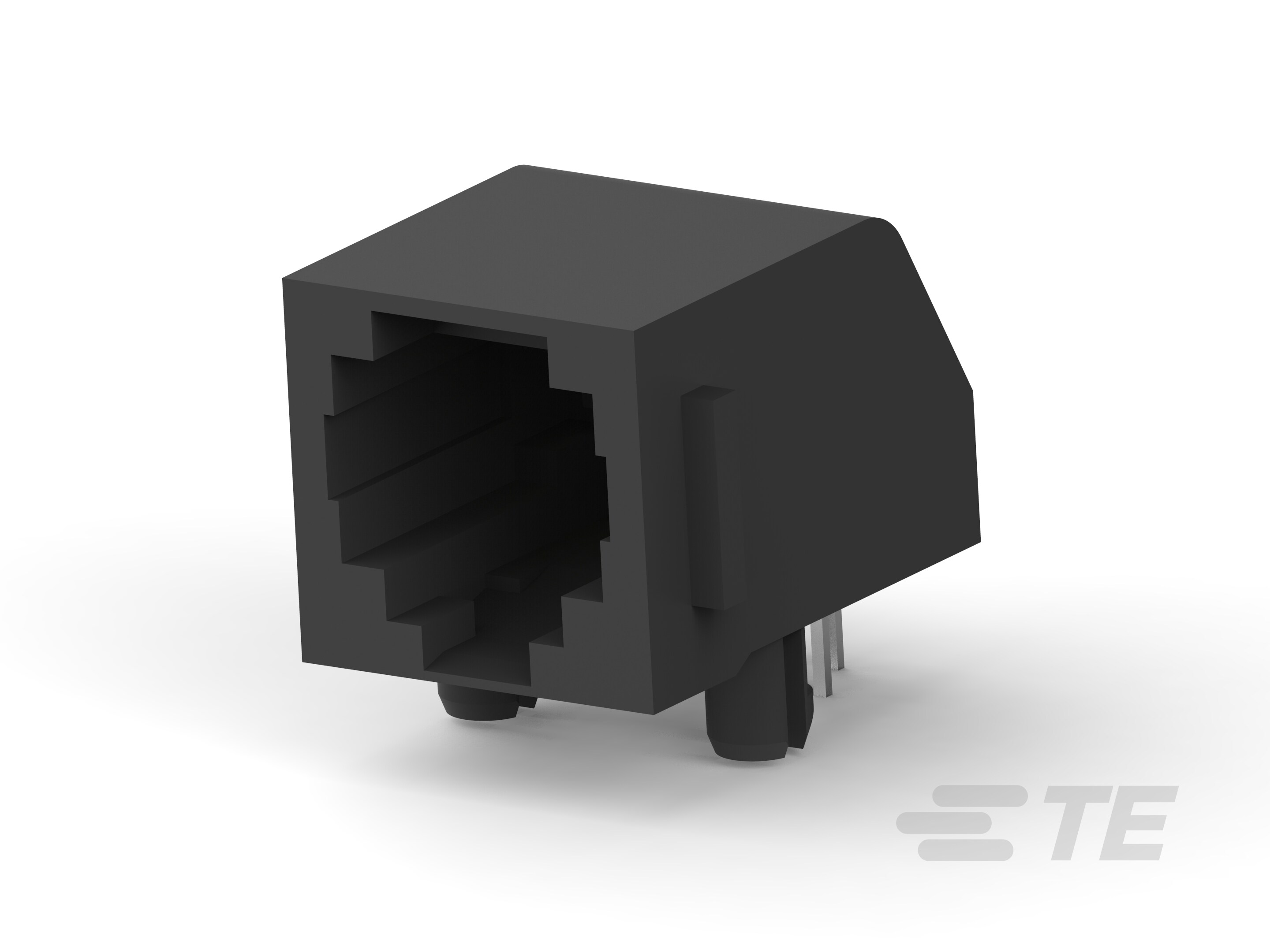

Specification	5555163-5

Connector Type	RJ11, Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Material	Phosphor Bronze
Features	Board Lock, Panel Stops
Housing Material	PBT, Polybutylene Terephthalate, Polyester
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Contacts	2
Number of Ports	1
Number of Positions	6
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation Angle	90 °
Orientation Direction	Right
Ratings	Cat3
Shielding	Unshielded
Tab Direction	Down
Termination	Solder

5555163 Series

Part	Termination	LED Color	Number of Contacts	Connector Type	Number of Positions	Ratings	Number of Ports	Contact Material	Orientation Angle	Orientation Direction	Number of Rows	Features	Tab Direction	Shielding	Mounting Type	Contact Finish	Housing Material	Contact Finish Thickness	Operating Temperature (Min)	Operating Temperature (Max)
TE Connectivity AMP Connectors 5555163-2	Solder	Does Not Contain LED	4	Jack RJ11 RJ14	6	Cat3	1	Phosphor Bronze	90 °	Right	1	Board Lock Panel Stops	Down	Unshielded	Through Hole	Gold	PBT Polybutylene Terephthalate Polyester	50 µin	-40 °C	85 °C
TE Connectivity AMP Connectors 5555163-5	Solder	Does Not Contain LED	2	Jack RJ11	6	Cat3	1	Phosphor Bronze	90 °	Right	1	Board Lock Panel Stops	Down	Unshielded	Through Hole	Gold	PBT Polybutylene Terephthalate Polyester	50 µin	-40 °C	85 °C
