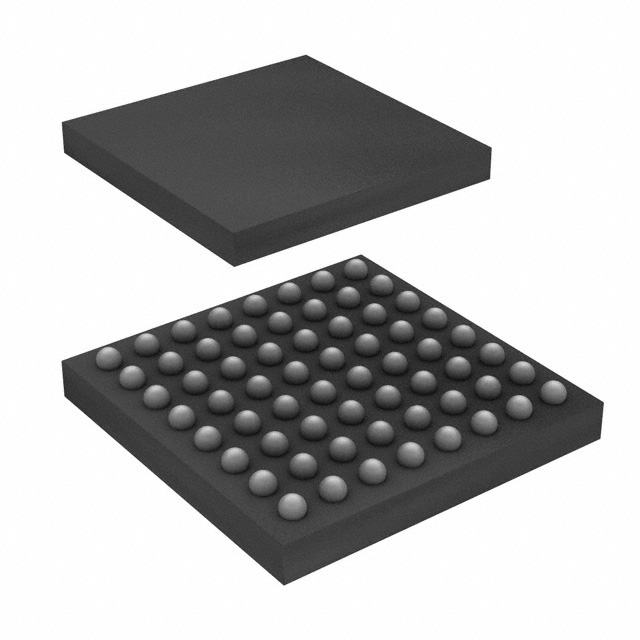

S29GL128S90DHA020

Active

Infineon Technologies

IC FLASH 128MBIT CFI 64FBGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet S29GL01GS, S29GL512S, S29GL256S, S29GL128S, 128 Mb_256 Mb_512 Mb_1 Gb GL-S MIRRORBIT_TM_ Flash Parallel, 3

S29GL128S90DHA020

Active

Infineon Technologies

IC FLASH 128MBIT CFI 64FBGA

Deep-Dive with AI

DocumentsDatasheet S29GL01GS, S29GL512S, S29GL256S, S29GL128S, 128 Mb_256 Mb_512 Mb_1 Gb GL-S MIRRORBIT_TM_ Flash Parallel, 3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S29GL128S90DHA020

Access Time	90 ns
Grade	Automotive
Memory Format	FLASH
Memory Interface	CFI
Memory Organization	16M x 8
Memory Size	128 Mb
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	64-LBGA
Qualification	AEC-Q100
Supplier Device Package	64-FBGA (9x9)
Technology	FLASH - NOR (SLC)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V
Write Cycle Time - Word, Page	60 ns

S29GL128 Series

...

Part	Package / Case	Memory Organization	Technology	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Access Time	Memory Interface	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Type	Memory Format	Memory Size	Write Cycle Time - Word, Page	Qualification	Grade
Infineon Technologies S29GL128S11FHIV20	64-LBGA	8M x 16	FLASH - NOR	Surface Mount	85 °C	-40 °C	110 ns	Parallel	64-FBGA (13x11)	1.65 V	3.6 V	Non-Volatile	FLASH	128 Mb	60 ns
Infineon Technologies S29GL128N11TFI020		16M x 8 8M x 16	FLASH - NOR	Surface Mount	85 °C	-40 °C	110 ns	Parallel	56-TSOP	2.7 V	3.6 V	Non-Volatile	FLASH	128 Mb	110 ns
Infineon Technologies S29GL128S10DHIV13	64-LBGA	8M x 16	FLASH - NOR	Surface Mount	85 °C	-40 °C	100 ns	Parallel	64-FBGA (9x9)	1.65 V	3.6 V	Non-Volatile	FLASH	128 Mb	60 ns
Infineon Technologies S29GL128S90DHSS20	64-LBGA	8M x 16	FLASH - NOR	Surface Mount	85 C	0 °C	90 ns	Parallel	64-FBGA (9x9)	2.7 V	3.6 V	Non-Volatile	FLASH	128 Mb	60 ns
Infineon Technologies S29GL128P90FFSS93	64-LBGA	16M x 8	FLASH - NOR	Surface Mount	85 C	0 °C	90 ns	Parallel	64-FBGA (13x11)	2.7 V	3.6 V	Non-Volatile	FLASH	128 Mb	90 ns
Infineon Technologies S29GL128S10DHIV23	64-LBGA	8M x 16	FLASH - NOR	Surface Mount	85 °C	-40 °C	100 ns	Parallel	64-FBGA (9x9)	1.65 V	3.6 V	Non-Volatile	FLASH	128 Mb	60 ns
Infineon Technologies S29GL128P90FAIR12	64-LBGA	16M x 8	FLASH - NOR	Surface Mount	85 °C	-40 °C	90 ns	Parallel	64-FBGA (13x11)	3 V	3.6 V	Non-Volatile	FLASH	128 Mb	90 ns
Infineon Technologies S29GL128S90DHA020	64-LBGA	16M x 8	FLASH - NOR (SLC)	Surface Mount	85 °C	-40 °C	90 ns	CFI	64-FBGA (9x9)	2.7 V	3.6 V	Non-Volatile	FLASH	128 Mb	60 ns	AEC-Q100	Automotive
Infineon Technologies S29GL128S90FHI010	64-LBGA	8M x 16	FLASH - NOR	Surface Mount	85 °C	-40 °C	90 ns	Parallel	64-FBGA (13x11)	2.7 V	3.6 V	Non-Volatile	FLASH	128 Mb	60 ns
Infineon Technologies S29GL128S90FHI023	64-LBGA	8M x 16	FLASH - NOR	Surface Mount	85 °C	-40 °C	90 ns	Parallel	64-FBGA (13x11)	2.7 V	3.6 V	Non-Volatile	FLASH	128 Mb	60 ns

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2600	$ 4.30

Description

General part information

S29GL128 Series

FLASH - NOR (SLC) Memory IC 128Mbit CFI 90 ns 64-FBGA (9x9)

Documents

Technical documentation and resources

Datasheet

S29GL01GS, S29GL512S, S29GL256S, S29GL128S, 128 Mb_256 Mb_512 Mb_1 Gb GL-S MIRRORBIT_TM_ Flash Parallel, 3
