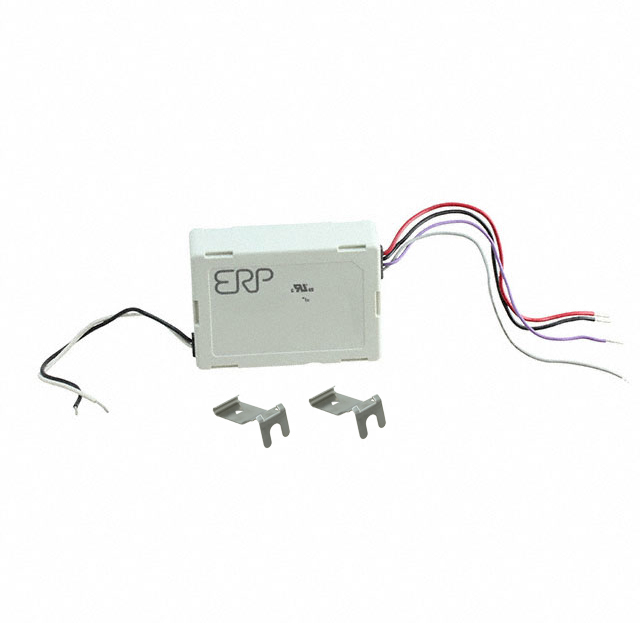

ESPT050W-1050-42-Z1

Active

ERP Power, LLC

LED DRIVER CC AC/DC 28-42V 1.05A

Search across all available documentation for this part.

Active

ERP Power, LLC

LED DRIVER CC AC/DC 28-42V 1.05A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.05A 28 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ESPT050W-1050-42-Z1	ESPT050 Series

Approval Agency	CB, CE, NEMKO, cRUcs, KC, FC, CCC, ENEC, CSA, SA, UL	CB, CE, NEMKO, cRUcs, KC, FC, CCC, ENEC, CSA, SA, UL
Current - Output (Max) [Max]	1.05 A	1.05 - 1.2 A
Dimming	ELV, Analog, TRIAC	ELV, Analog, TRIAC
Efficiency	87 %	87 %
Features	OTP, SCP, OCP	OTP, SCP, OCP
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Power (Watts)	44 W	44 - 50 W
Ratings	IP64	IP64
Size / Dimension [x]	84.8 mm	84.8 mm
Size / Dimension [x]	3.34 in	3.34 in
Size / Dimension [y]	59.9 mm	59.9 mm
Size / Dimension [y]	2.36 "	2.36 "
Size / Dimension [z]	1.18 in	1.18 in
Size / Dimension [z]	30 mm	30 mm
Termination Style	Wire Leads	Wire Leads
Topology	AC DC Converter	AC DC Converter
Type	Constant Current	Constant Current
Voltage - Input (Max) [Max]	277 VAC	277 VAC
Voltage - Input (Min) [Min]	120 VAC	120 VAC
Voltage - Output [Max]	42 V	42 V
Voltage - Output [Min]	28 V	28 V

LED DRIVER CC AC/DC 28-42V 1.2A

Part	Power (Watts)	Dimming	Voltage - Output [Min]	Voltage - Output [Max]	Termination Style	Features	Approval Agency	Number of Outputs	Mounting Type	Topology	Type	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Voltage - Input (Max) [Max]	Ratings
ERP Power, LLC ESPT050W-1200-42-Z1	50 W	Analog, ELV, TRIAC	28 V	42 V	Wire Leads	OCP, OTP, SCP	CB, CCC, CE, cRUcs, CSA, ENEC, FC, KC, NEMKO, SA, UL	1	Chassis Mount	AC DC Converter	Constant Current	1.2 A	120 VAC	84.8 mm	59.9 mm	1.18 in	2.36 "	3.34 in	30 mm	87 %	277 VAC	IP64
ERP Power, LLC ESPT050W-1050-42-Z1	44 W	Analog, ELV, TRIAC	28 V	42 V	Wire Leads	OCP, OTP, SCP	CB, CCC, CE, cRUcs, CSA, ENEC, FC, KC, NEMKO, SA, UL	1	Chassis Mount	AC DC Converter	Constant Current	1.05 A	120 VAC	84.8 mm	59.9 mm	1.18 in	2.36 "	3.34 in	30 mm	87 %	277 VAC	IP64
