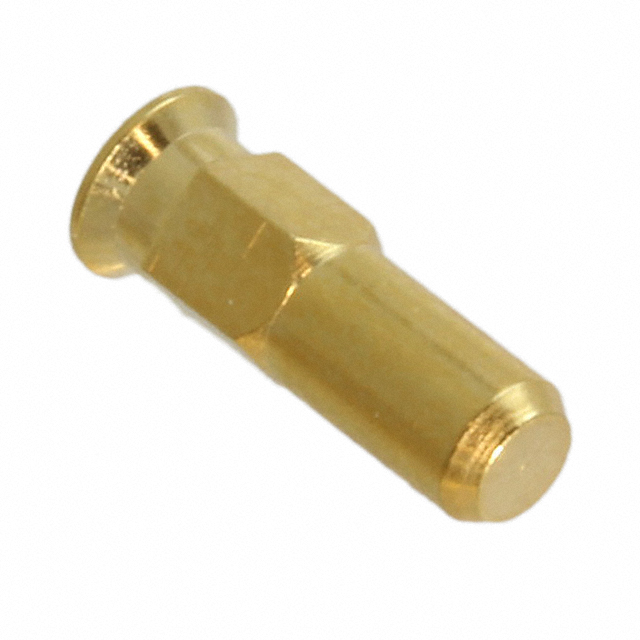

0354-0-15-15-02-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .040-.050 HEX
Deep-Dive with AI
Search across all available documentation for this part.
0354-0-15-15-02-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .040-.050 HEX
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0354-0-15-15-02-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.05 in |
| Accepts Pin Diameter [Max] | 1.27 mm |
| Accepts Pin Diameter [Min] | 1.02 mm |
| Accepts Pin Diameter [Min] | 0.04 " |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.119 in |
| Flange Diameter [diameter] | 3.02 mm |
| Length - Overall | 7.37 mm |
| Length - Overall | 0.29 in |
| Mounting Hole Diameter [diameter] | 0.104 in |
| Mounting Hole Diameter [diameter] | 2.64 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 1.73 mm |
| Pin Hole Diameter [diameter] | 0.068 in |
| Socket Depth | 6.6 mm |
| Socket Depth | 0.26 in |
| Tail Type | No Tail |
| Termination | Press-Fit, Hex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.77 | |
| 10 | $ 0.66 | |||
| 25 | $ 0.61 | |||
| 50 | $ 0.58 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.52 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.47 | |||
| 2500 | $ 0.44 | |||
Description
General part information
0354-0 Series
Pin Receptacle Connector 0.040" ~ 0.050" (1.02mm ~ 1.27mm) No Tail Press-Fit, Hex
Documents
Technical documentation and resources
No documents available
