T4133412051-000
ActiveTE Connectivity AMP Connectors

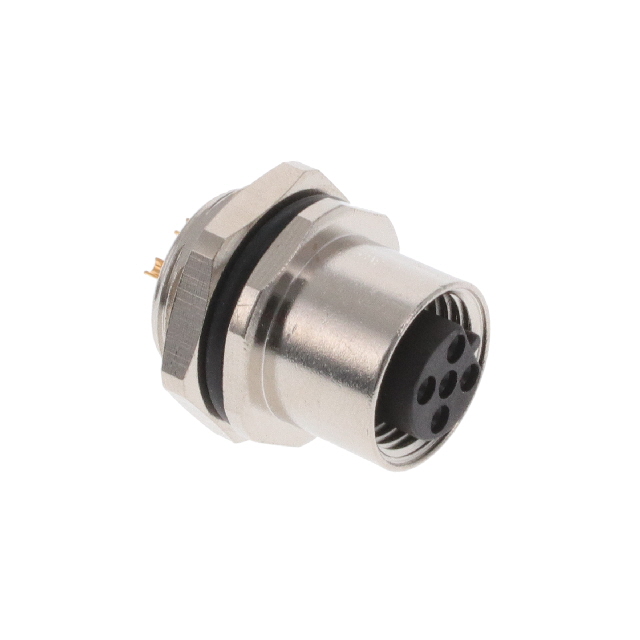

CONN PLUG FMALE 5POS SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
T4133412051-000
ActiveTE Connectivity AMP Connectors
CONN PLUG FMALE 5POS SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4133412051-000 | T41334 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Color | Silver | Silver |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 3 µin | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 µm |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 4 A | 4 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Positions | - | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | B | B |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | M12-5 | M12-5, M12-3, M12-2 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 60 VDC | 60 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.23 | |
| 10 | $ 7.18 | |||
| 25 | $ 6.99 | |||
| 50 | $ 6.80 | |||
| 100 | $ 6.38 | |||
| 250 | $ 6.35 | |||
| 500 | $ 5.97 | |||
| 1000 | $ 5.33 | |||
T41334 Series
CONN PLUG FMALE 5POS SOLDER CUP
| Part | Contact Finish - Mating | Shell Size - Insert | Shell Finish | Shell Material | Contact Material | Shielding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Voltage Rating | Color | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Insert Material | Mounting Feature | Primary Material | Orientation | Ingress Protection | Connector Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4133412051-000 | Gold | M12-5 | Nickel | Copper Alloy | Copper Alloy | Unshielded | 3 µin | 0.076 µm | UL94 V-0 | 60 VDC | Silver | 4 A | 85 °C | -40 °C | Industrial | Polyamide (PA66), Nylon 6/6 | Bulkhead - Rear Side Nut | Metal | B | IP67 - Dust Tight, Waterproof | Female Sockets, Plug | |
TE Connectivity AMP Connectors T4133412031-000 | Gold | M12-3 | Nickel | Copper Alloy | Copper Alloy | Unshielded | 3 µin | 0.076 µm | UL94 V-0 | 250 VDC | Silver | 4 A | 85 °C | -40 °C | Industrial | Polyamide (PA66), Nylon 6/6 | Bulkhead - Rear Side Nut | Metal | B | IP67 - Dust Tight, Waterproof | Female Sockets, Plug | |
TE Connectivity AMP Connectors T4133412021-000 | Gold | M12-2 | Nickel | Copper Alloy | Copper Alloy | Unshielded | 3 µin | 0.076 µm | UL94 V-0 | 250 VDC | Silver | 4 A | 85 °C | -40 °C | Industrial | Polyamide (PA66), Nylon 6/6 | Bulkhead - Rear Side Nut | Metal | B | IP67 - Dust Tight, Waterproof | Female Sockets, Plug | 2 |
Description
General part information
T41334 Series
5 Position Circular Connector Plug, Female Sockets Solder Cup
