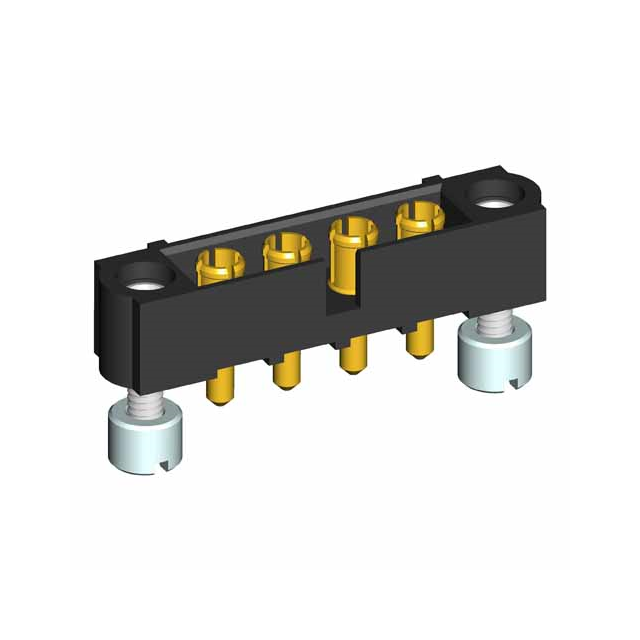

M80-5000000M3-04-331-00-000

Active

Harwin Inc.

BOARD CONNECTOR, 4 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, SOLDER TERMINAL, M2, BLACK INSULATOR, RECEPTACLE,

Search across all available documentation for this part.

Active

Harwin Inc.

BOARD CONNECTOR, 4 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, SOLDER TERMINAL, M2, BLACK INSULATOR, RECEPTACLE,

Technical Specifications

Parameters and characteristics for this part

Specification	M80-5000000M3-04-331-00-000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin, Power
Current Rating (Amps)	20 A
Features	Mounting Flange, Mating Flange, Mounting Hardware, Keying Slot
Insulation Color	Black
Insulation Height [custom]	5.51 mm
Insulation Height [custom]	0.217 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.157 "
Pitch - Mating	4 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	800 V

Part	Pitch - Mating	Pitch - Mating	Style	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Material Flammability Rating	Number of Rows	Contact Length - Post	Contact Length - Post	Connector Type	Contact Type	Contact Finish - Mating	Shrouding	Number of Positions Loaded	Contact Material	Voltage Rating	Insulation Height [custom]	Insulation Height [custom]	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Features	Insulation Material	Termination	Insulation Color	Mated Stacking Heights	Insulation Height	Insulation Height
Harwin Inc. M80-5000000M3-04-331-00-000	0.157 "	4 mm	Board to Cable/Wire	20 A	10 çin	0.25 çm	Through Hole	UL94 V-0	1	3.5 mm	0.138 in	Header	Male Pin Power	Gold	Shrouded - 4 Wall	All	Copper Alloy	800 V	5.51 mm	0.217 in	Circular	-55 °C	125 °C	4	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Polyphenylene Sulfide (PPS) Glass Filled	Solder	Black
Harwin Inc. M80-5000000M3-04-332-00-000	0.157 "	4 mm	Board to Cable/Wire	20 A	10 çin	0.25 çm	Through Hole	UL94 V-0	1	5 mm	0.197 in	Header	Male Pin Power	Gold	Shrouded - 4 Wall	All	Copper Alloy	800 V			Circular	-55 °C	125 °C	4	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Polyphenylene Sulfide (PPS) Glass Filled	Solder	Black	7.3 mm 9.75 mm	5.6 mm	0.22 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 4 position 0.157" (4.00mm)
