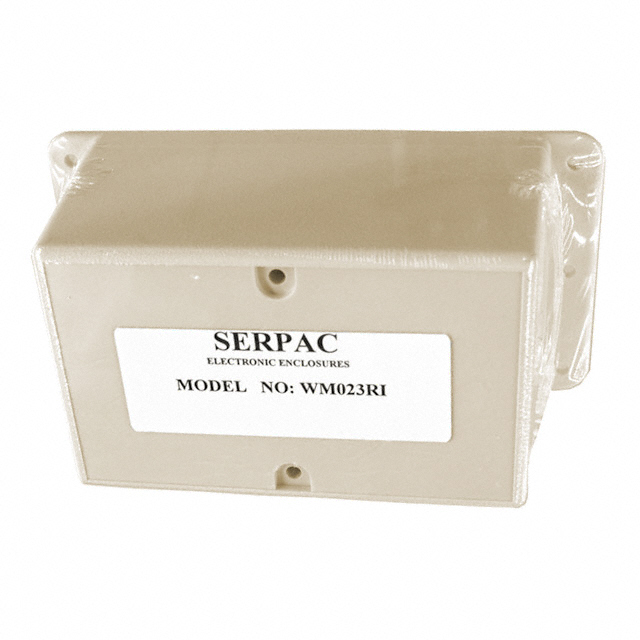

WM023RI,AL

Active

Serpac

BOX ABS ALMOND 4.1"L X 2.6"W

Deep-Dive with AI

Search across all available documentation for this part.

WM023RI,AL

Active

Serpac

BOX ABS ALMOND 4.1"L X 2.6"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WM023RI,AL	WM023 Series

Area (L x W)	10.7 in²	10.7 in²
Area (L x W)	69 cm²	69 cm²
Color	Almond	Almond, Black, Gray
Container Type	Box	Box
Design	Cover Included	Cover Included
Features	Mounting Flange, Wall Mount, PCB Supports, Front Access	Mounting Flange, Wall Mount, PCB Supports, Front Access
Height [z]	2.1 in	2.1 in
Height [z]	53.34 mm	53.34 mm
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Size / Dimension [x]	104.14 mm	104.14 mm
Size / Dimension [x]	4.1 "	4.1 "
Size / Dimension [y]	2.6 "	2.6 "
Size / Dimension [y]	66.04 mm	66.04 mm
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in
Weight	0.187 lb	0.187 lb
Weight	84.82 g	84.82 g

WM023 Series

BOX ABS ALMOND 4.1"L X 2.6"W

Part	Height [z]	Height [z]	Container Type	Ratings	Weight	Weight	Material Flammability Rating	Features	Color	Material	Area (L x W)	Area (L x W)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Thickness	Thickness	Design
Serpac WM023RI,AL	2.1 in	53.34 mm	Box	IP40, NEMA 1	0.187 lb	84.82 g	UL94 HB	Front Access, Mounting Flange, PCB Supports, Wall Mount	Almond	Plastic, ABS	10.7 in²	69 cm²	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Cover Included
Serpac WM023R,BK	2.1 in	53.34 mm	Box	IP40, NEMA 1	0.187 lb	84.82 g	UL94 HB	Front Access, Mounting Flange, PCB Supports, Wall Mount	Black	Plastic, ABS	10.7 in²	69 cm²	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Cover Included
Serpac WM023,AL	2.1 in	53.34 mm	Box	IP40, NEMA 1	0.187 lb	84.82 g	UL94 HB	Mounting Flange, PCB Supports, Wall Mount	Almond	Plastic, ABS	10.7 in²	69 cm²	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Cover Included
Serpac WM023I,BK	2.1 in	53.34 mm	Box	IP40, NEMA 1	0.187 lb	84.82 g	UL94 HB	Mounting Flange, PCB Supports, Wall Mount	Black	Plastic, ABS	10.7 in²	69 cm²	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Cover Included
Serpac WM023RI,BK	2.1 in	53.34 mm	Box	IP40, NEMA 1	0.187 lb	84.82 g	UL94 HB	Front Access, Mounting Flange, PCB Supports, Wall Mount	Black	Plastic, ABS	10.7 in²	69 cm²	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Cover Included
Serpac WM023I,GY	2.1 in	53.34 mm	Box	IP40, NEMA 1	0.187 lb	84.82 g	UL94 HB	Mounting Flange, PCB Supports, Wall Mount	Gray	Plastic, ABS	10.7 in²	69 cm²	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Cover Included
Serpac WM023,GY	2.1 in	53.34 mm	Box	IP40, NEMA 1	0.187 lb	84.82 g	UL94 HB	Mounting Flange, PCB Supports, Wall Mount	Gray	Plastic, ABS	10.7 in²	69 cm²	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Cover Included
Serpac WM023,BK	2.1 in	53.34 mm	Box	IP40, NEMA 1	0.187 lb	84.82 g	UL94 HB	Mounting Flange, PCB Supports, Wall Mount	Black	Plastic, ABS	10.7 in²	69 cm²	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Cover Included
Serpac WM023R,AL	2.1 in	53.34 mm	Box	IP40, NEMA 1	0.187 lb	84.82 g	UL94 HB	Front Access, Mounting Flange, PCB Supports, Wall Mount	Almond	Plastic, ABS	10.7 in²	69 cm²	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Cover Included
Serpac WM023R,GY	2.1 in	53.34 mm	Box	IP40, NEMA 1	0.187 lb	84.82 g	UL94 HB	Front Access, Mounting Flange, PCB Supports, Wall Mount	Gray	Plastic, ABS	10.7 in²	69 cm²	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Cover Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.71

Description

General part information

WM023 Series

Box Plastic, ABS Almond Cover Included 4.100" L x 2.600" W (104.14mm x 66.04mm) X 2.100" (53.34mm)

Documents

Technical documentation and resources

No documents available
