1548-0-57-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.

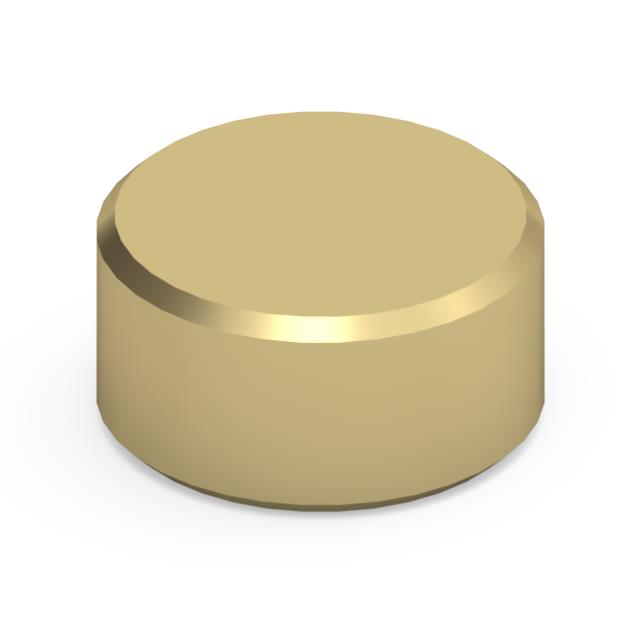

.048" DIAMETER TARGET DISC
Deep-Dive with AI
Search across all available documentation for this part.
1548-0-57-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
.048" DIAMETER TARGET DISC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1548-0-57-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Contact Type | Contact Pad |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 0.048 in |
| Pad Layout Dimension [diameter] | 1.22 mm |
| Pad Layout Dimension [z] | 0.61 mm |
| Pad Layout Dimension [z] | 0.024 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.81 | |
| 10 | $ 0.62 | |||
| 25 | $ 0.56 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.43 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.37 | |||
| 2500 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 0.81 | ||
| 10 | $ 0.62 | |||
| 25 | $ 0.56 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.43 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.37 | |||
| 2500 | $ 0.33 | |||
| Tape & Reel (TR) | 15000 | $ 0.27 | ||
Description
General part information
1548-0 Series
Contact Spring Surface Mount
